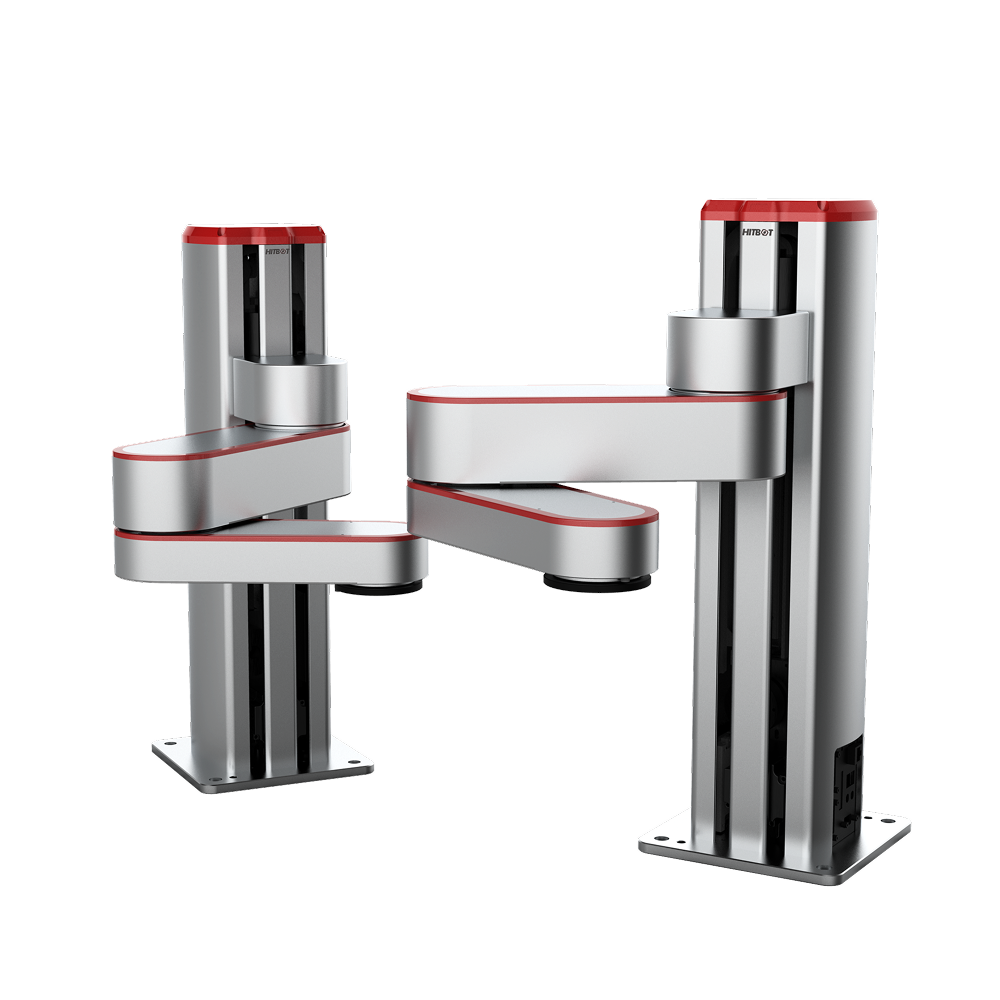

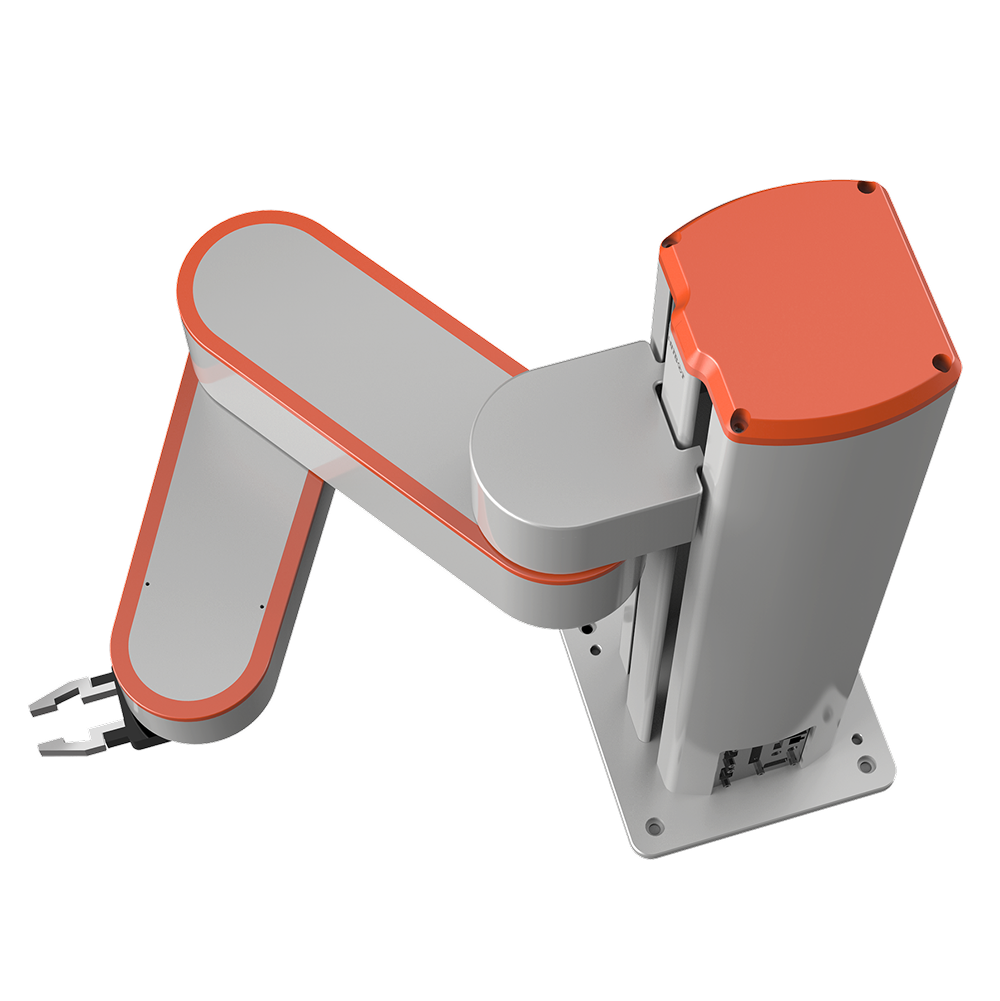

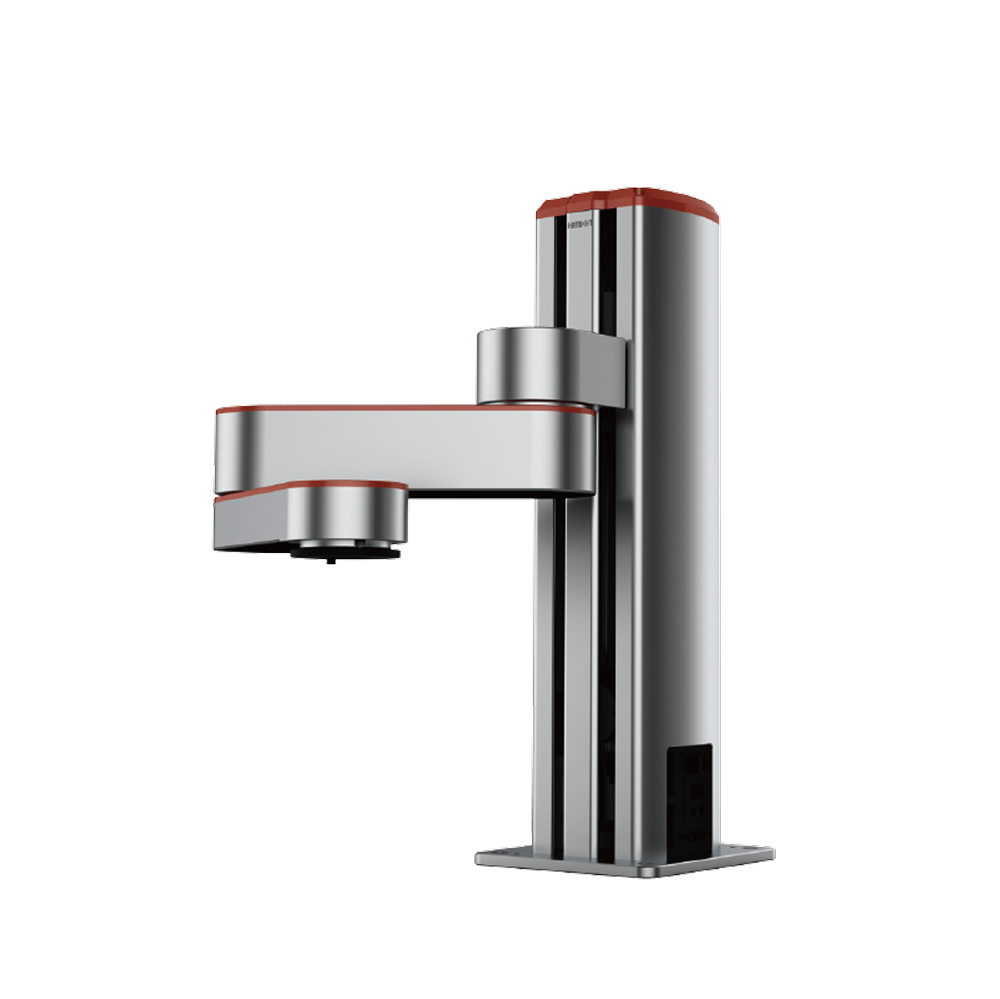

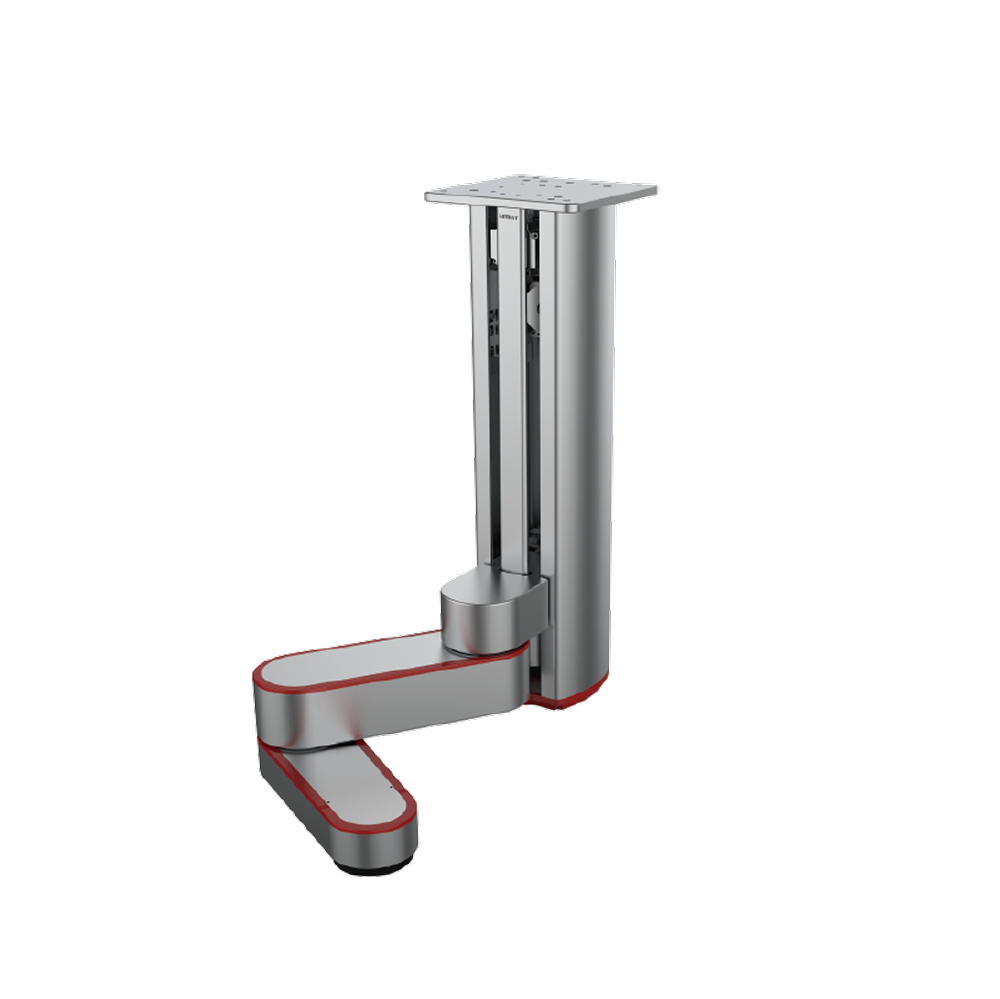

The Z-Arm 2442 is a versatile, high-precision SCARA robot designed for electronics manufacturing, medical device assembly, and automated small-scale production. With its extended reach and optimized motion control, it ensures fast, accurate, and consistent performance in high-speed assembly lines and quality-sensitive environments.

Model

Z-Arm 2442

1 axis arm length

220mm

2 axis arm length

200mm

Z axis stroke

240mm (Height Customizable)

R axis rotation range

±1080° or ±170° With Mechanical Limit

Linear speed

1020mm/s (Payload 2kg)

Repeatability

±0.03mm

Standard payload

2kg

Maximum payload

3kg

Power supply

220V/110V 50-60Hz

Communication

Ethernet

Use environment

0-45°C, RH20-80% (No Frost)

Robot arm height

596mm

Robot arm weight

19kg (240mm Stroke)

Collision detection

Yes

Drag teaching

Yes

Emergency stop

Yes

Gripper Compatibility

Z-EFG-8S

Z-EFG-12

Z-EFG-20S

Z-EFG-20

Z-EFG-30

Z-EFG-50

Z-EFG-100

Z-ERG-20

Z-ERG-20-100
