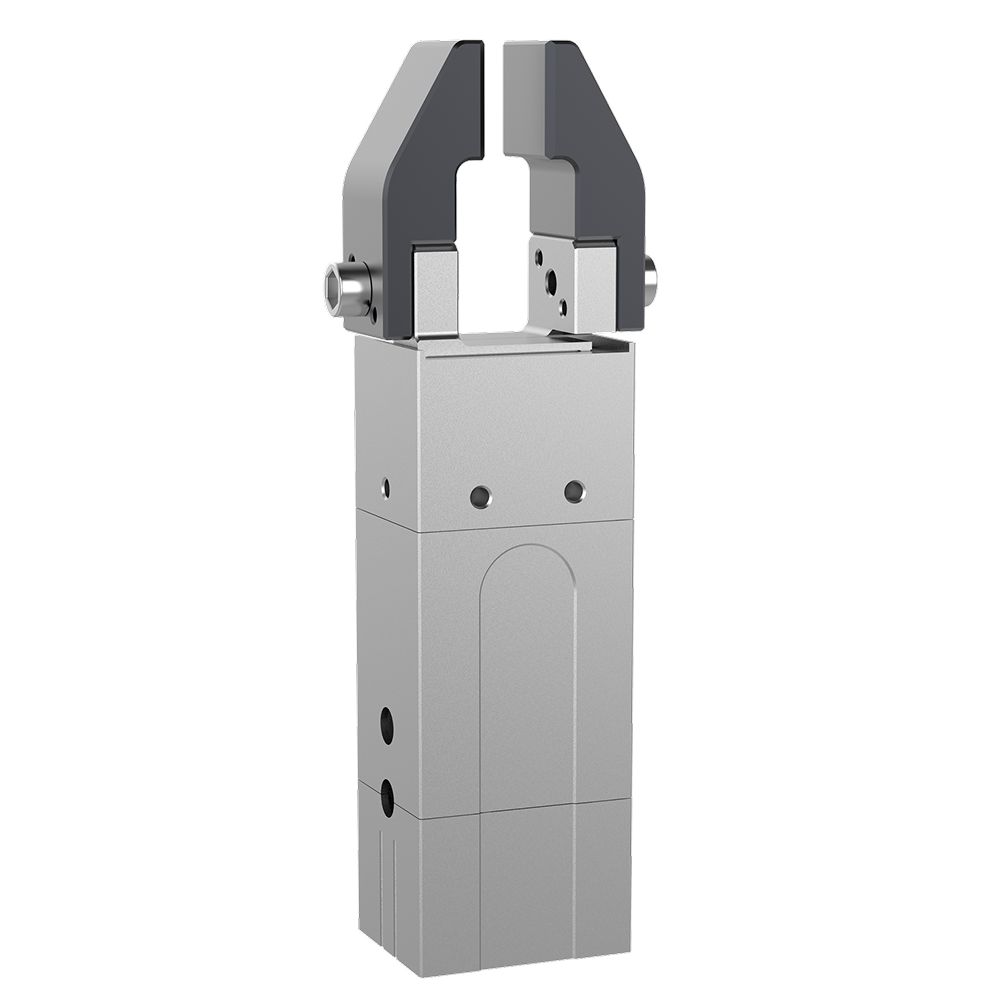

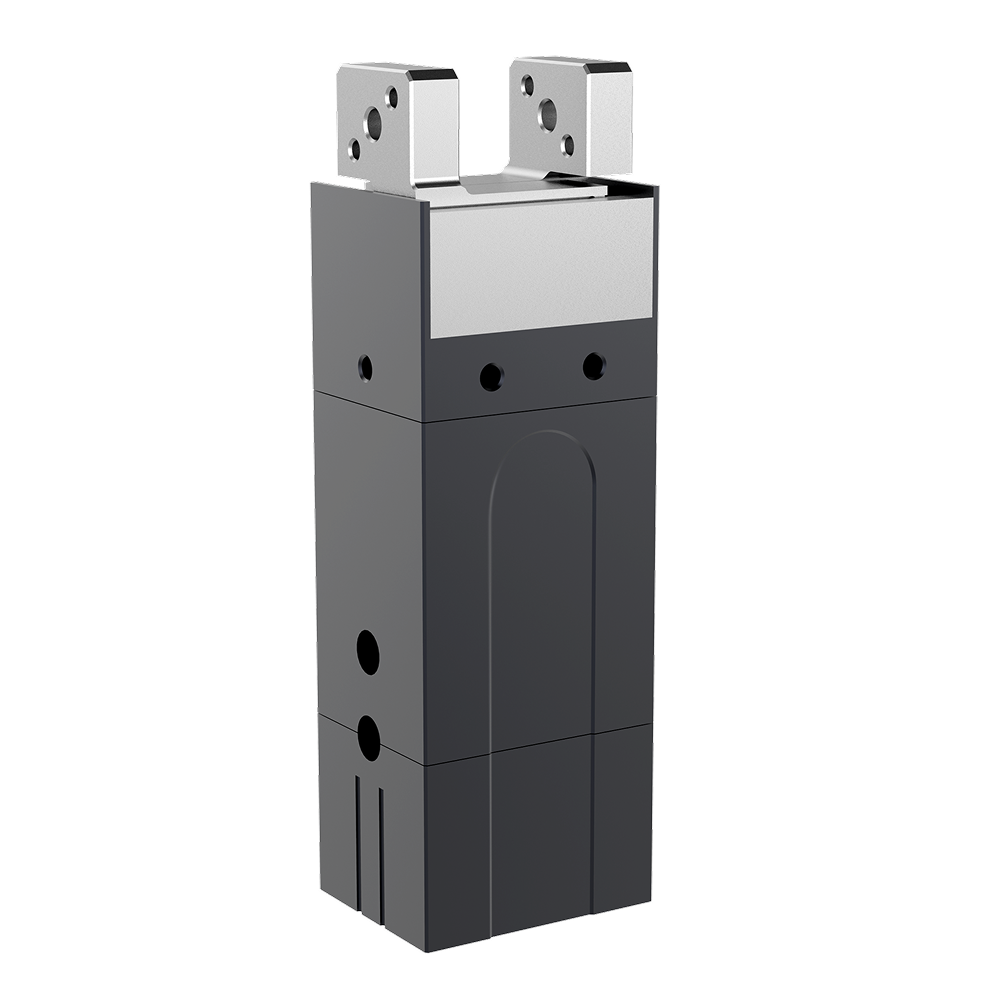

The Z-EFG-8S is an ultra-compact, high-precision electric gripper engineered for delicate micro-handling and small-part automation. Its lightweight design, ±0.02mm repeatability, and adjustable gripping force (8- 20N) make it ideal for electronics assembly, lab automation, and intricate material handling. Designed for SCARA robots, this gripper enhances speed, accuracy, and efficiency in precision applications.

Model

Z-EFG-8S

Total Stroke

8mm

Gripping Force

8-20N (adjustable)

Repeatability

±0.02mm

Gripping Weight

≤0.3kg

Single Stroke Time

0.1s

Weight

0.25kg

Dimension

30 × 24 × 93.9mm

Rated Voltage

24V±10%

Peak Current

0.6A

Protection Class

IP20

Temperature Range

5-55°C

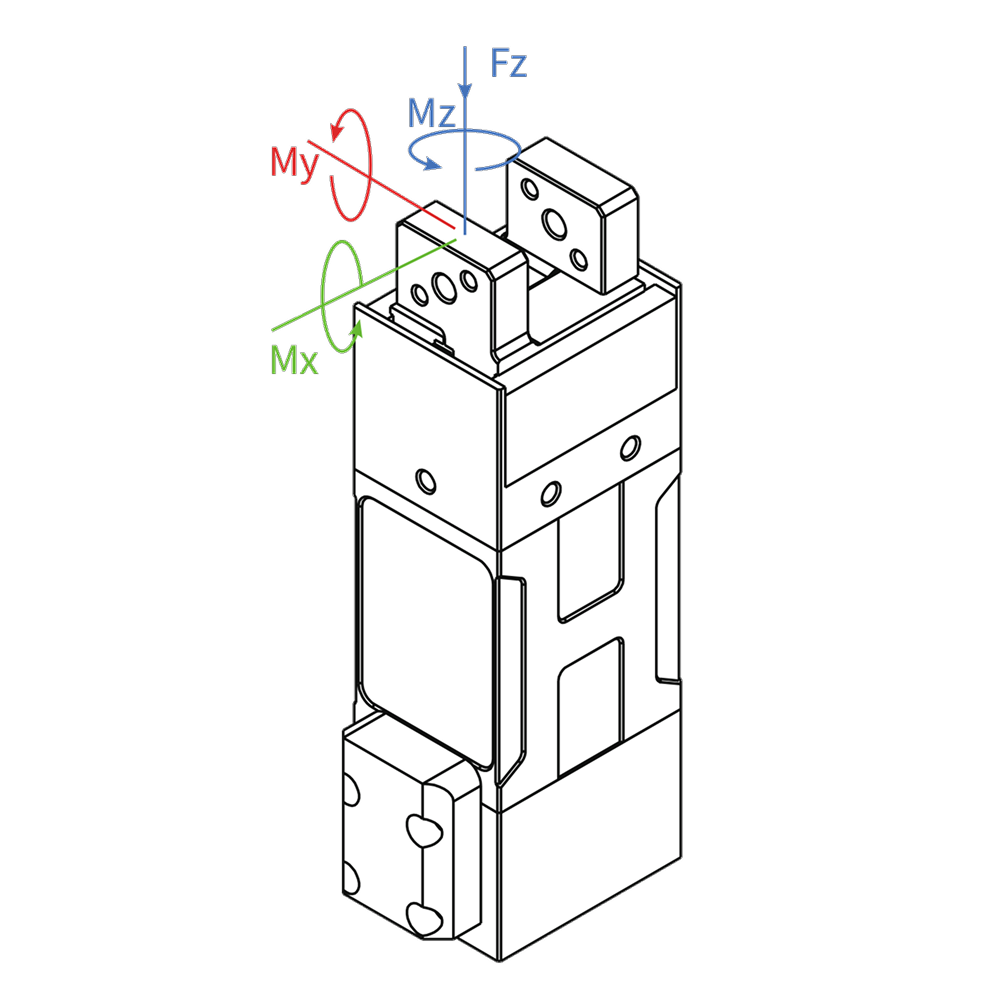

Force & Torque Capacity:

Fz (Axial Force)

120N

Mx (Torque around X-axis)

1.6 N·m

My (Torque around Y-axis)

1.8 N·m

Mz (Torque around Z-axis)

1.5 N·m

Gripper Compatibility
