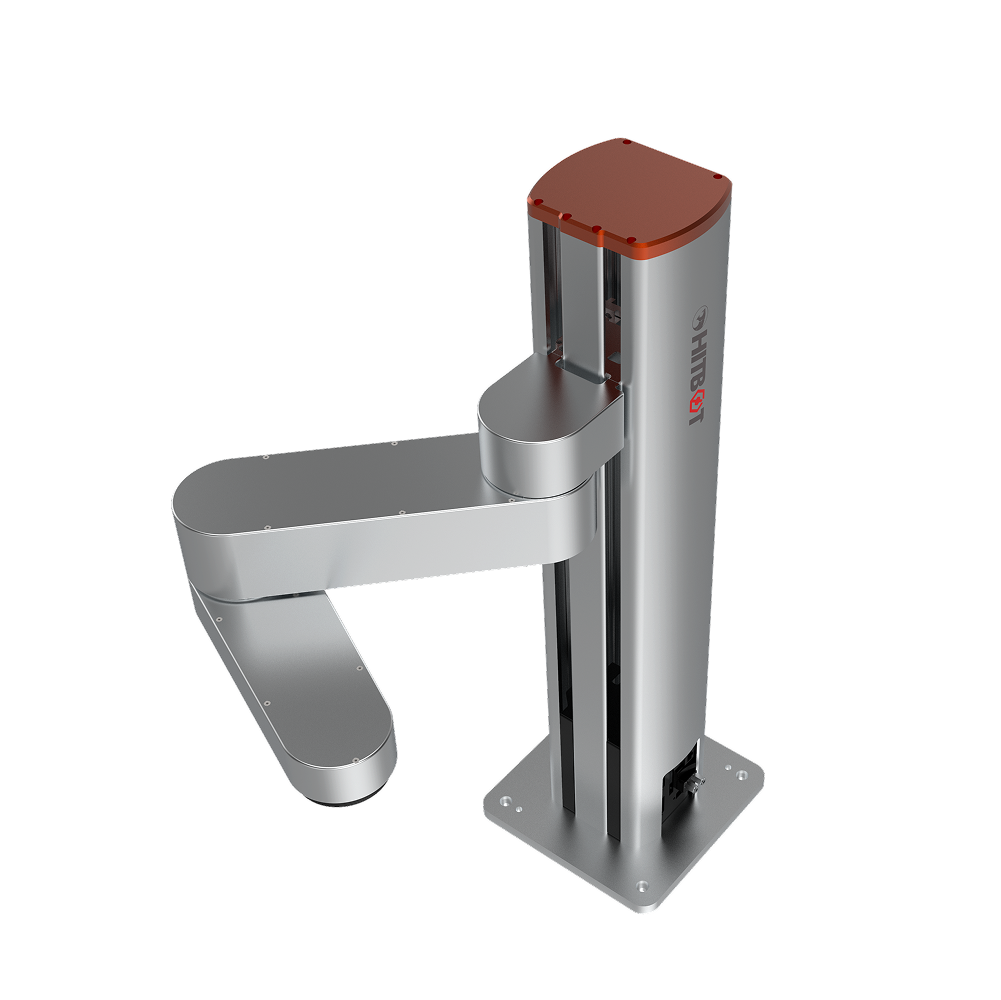

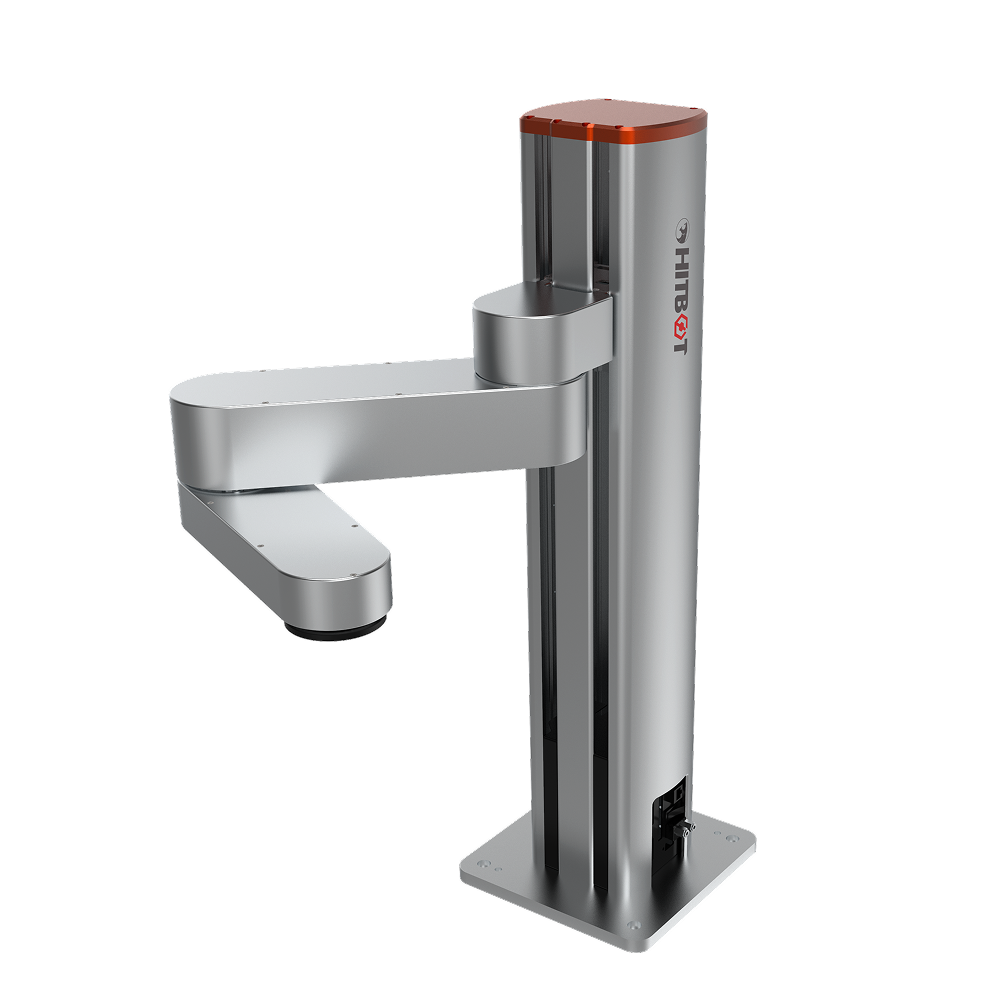

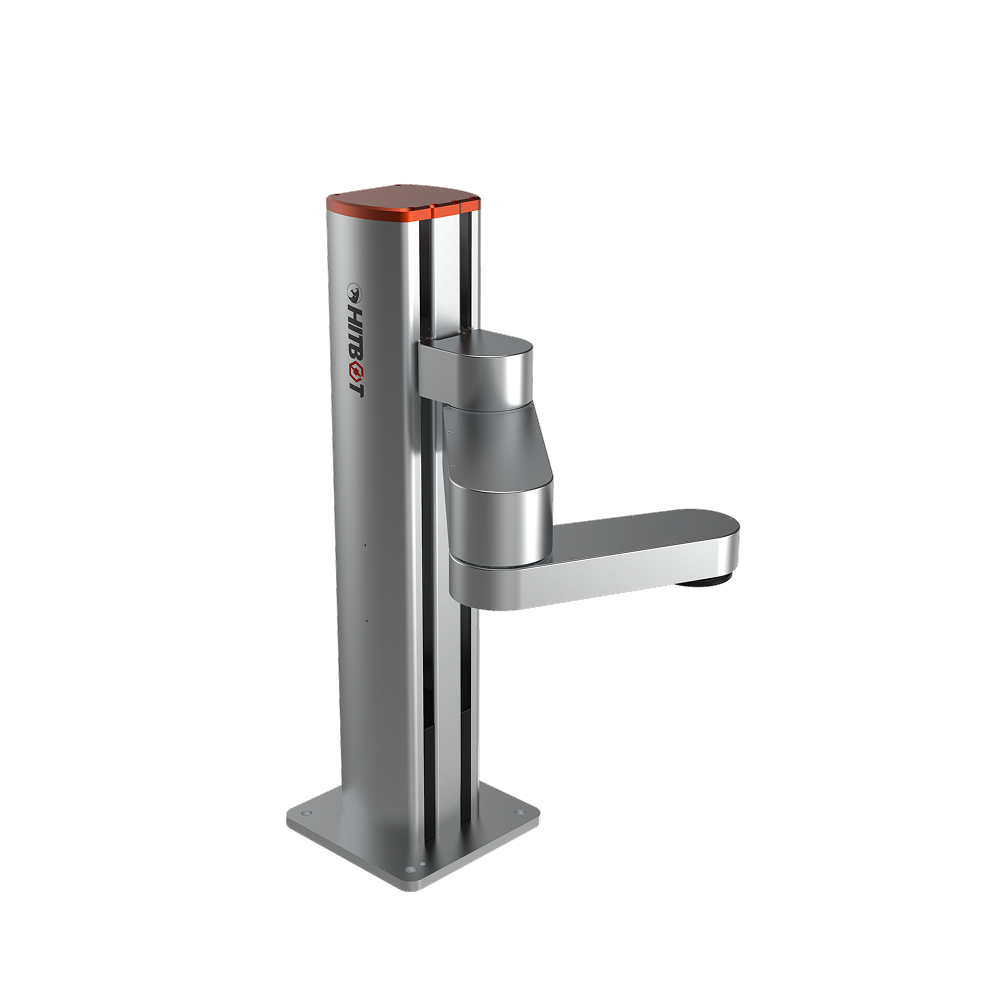

Z-Arm 4150 | High-Speed SCARA Robot for Industrial Material Handling & Assembly

The Z-Arm 4150 is a powerful, high-speed SCARA robot designed for industrial automation, material handling, and high-speed assembly. With a 5kg max payload, rapid motion speeds, and a durable structure, it ensures efficient, high-throughput operations in manufacturing, sorting, and packaging environments.

Parameter

Specification

Model

Z-Arm 4150

1 axis arm length

275mm

2 axis arm length

225mm

Z axis stroke

410mm (Height Customizable)

R axis rotation range

±1080° or ±170° With Mechanical Limit

Linear speed

1400mm/s (Payload 4kg)

Repeatability

±0.05mm

Standard payload

4kg

Maximum payload

5kg

Power supply

220V/110V 50-60Hz

Communication

Ethernet

Use environment

0-45°C, RH20-80% (No Frost)

Robot arm height

500mm

Robot arm weight

830mm

Collision detection

No

Drag teaching

Yes

Emergency stop

Yes

Payload Capacity:

4kg standard, 5kg max – Ideal for industrial handling.

High-Speed Motion:

1400mm/s, enabling fast pick-and-place operations.

Extended Reach:

275mm + 225mm arm lengths, covering a wider working range.

Durable & High-Power Design:

48VDC power system for handling heavier loads.

Optimised for Industrial Use:

Ideal for sorting, packaging, and high-speed assembly tasks.

Gripper Compatibility

Z-EFG-8S
Z-EFG-12
Z-EFG-20S
Z-EFG-20
Z-EFG-30
Z-EFG-50
Z-EFG-100
Z-ERG-20

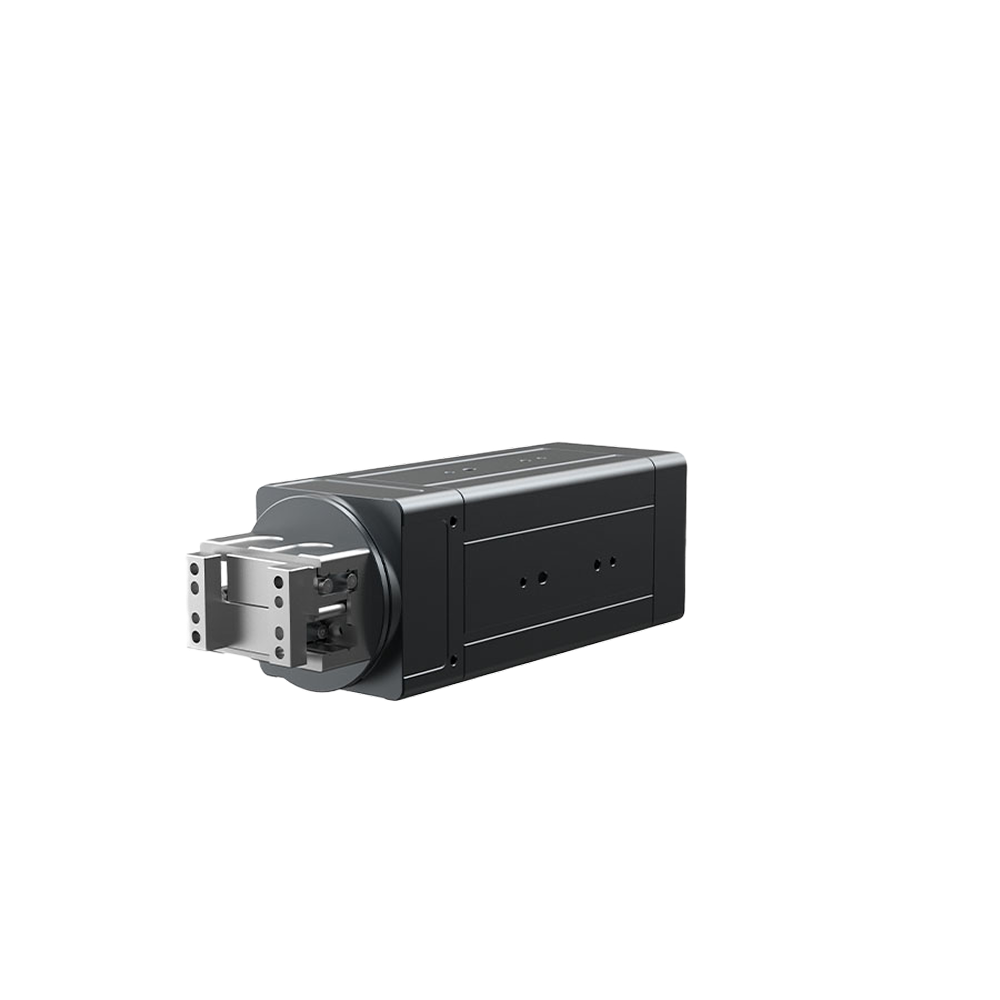

Z-ERG-20-100

Automation in Manufacturing

The Z-Arm 4150 increases production efficiency by automating material handling, machine tending, and assembly tasks, ensuring higher throughput in manufacturing environments.

Learn More

Logistic Assistance

With high-speed motion and precision handling, the Z-Arm 4150 optimises sorting and packaging operations, reducing labour costs and improving warehouse automation.

Learn More

Inquiry Form

Get in touch with us for product inquiries, pricing, and technical details.

Product Model: Z-Arm 4150
