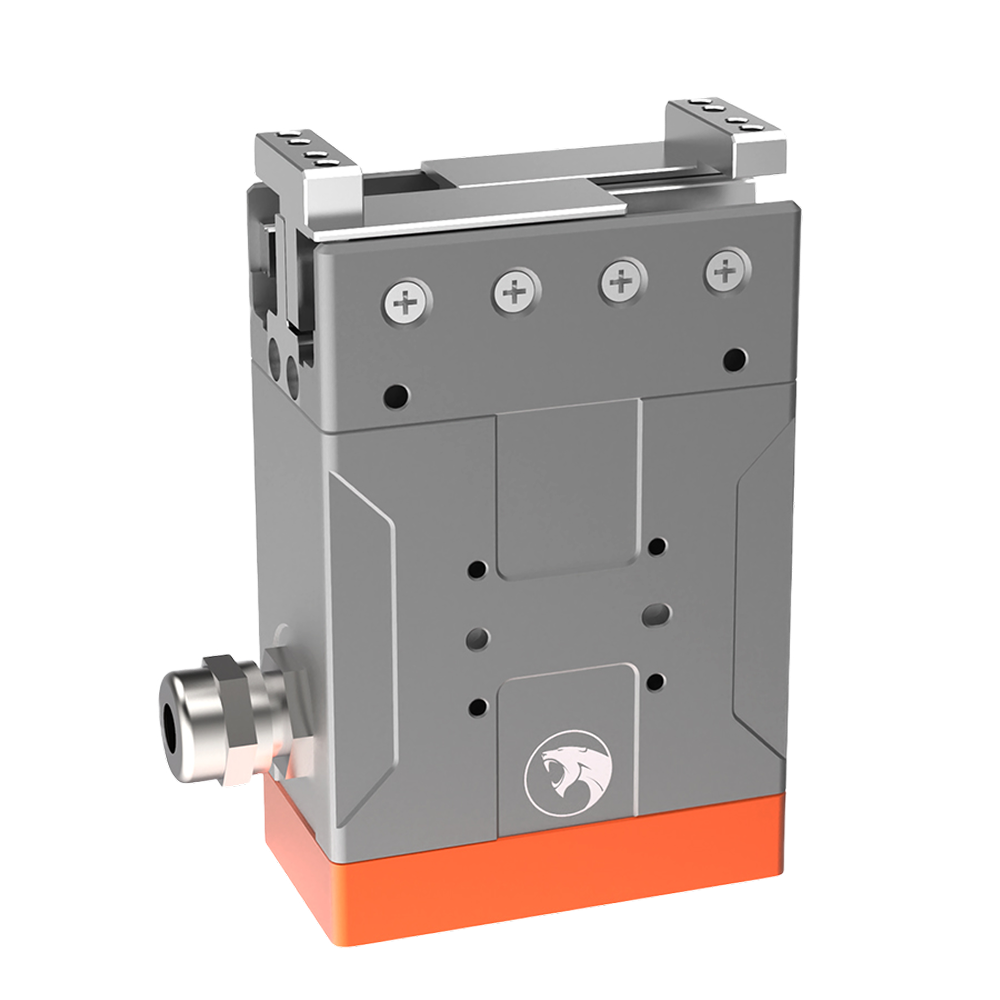

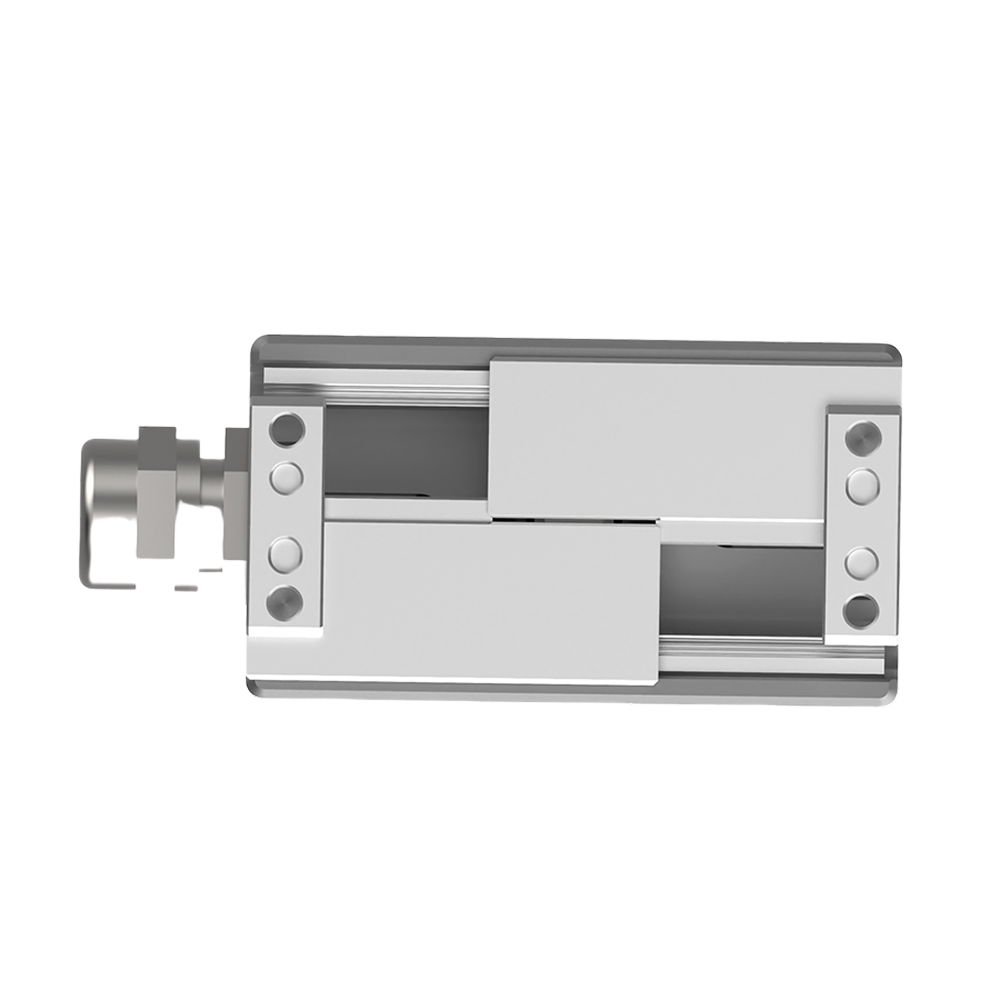

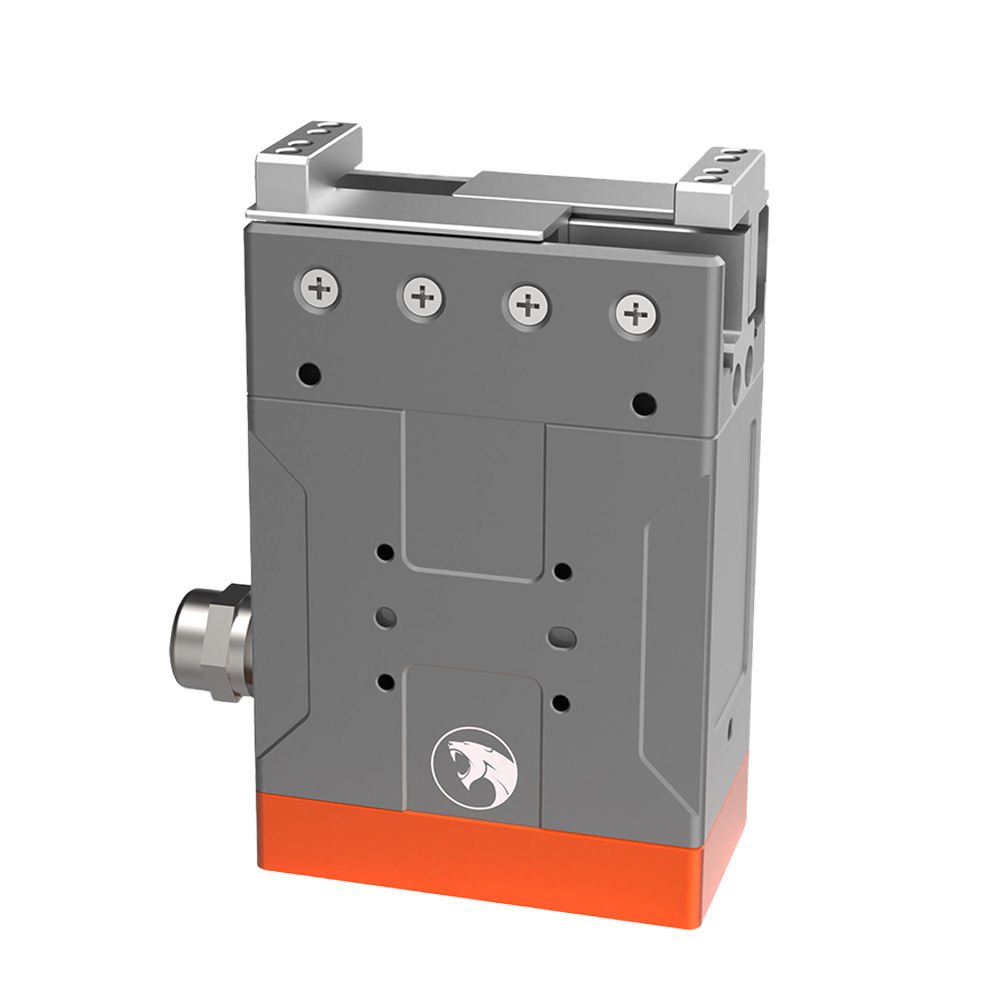

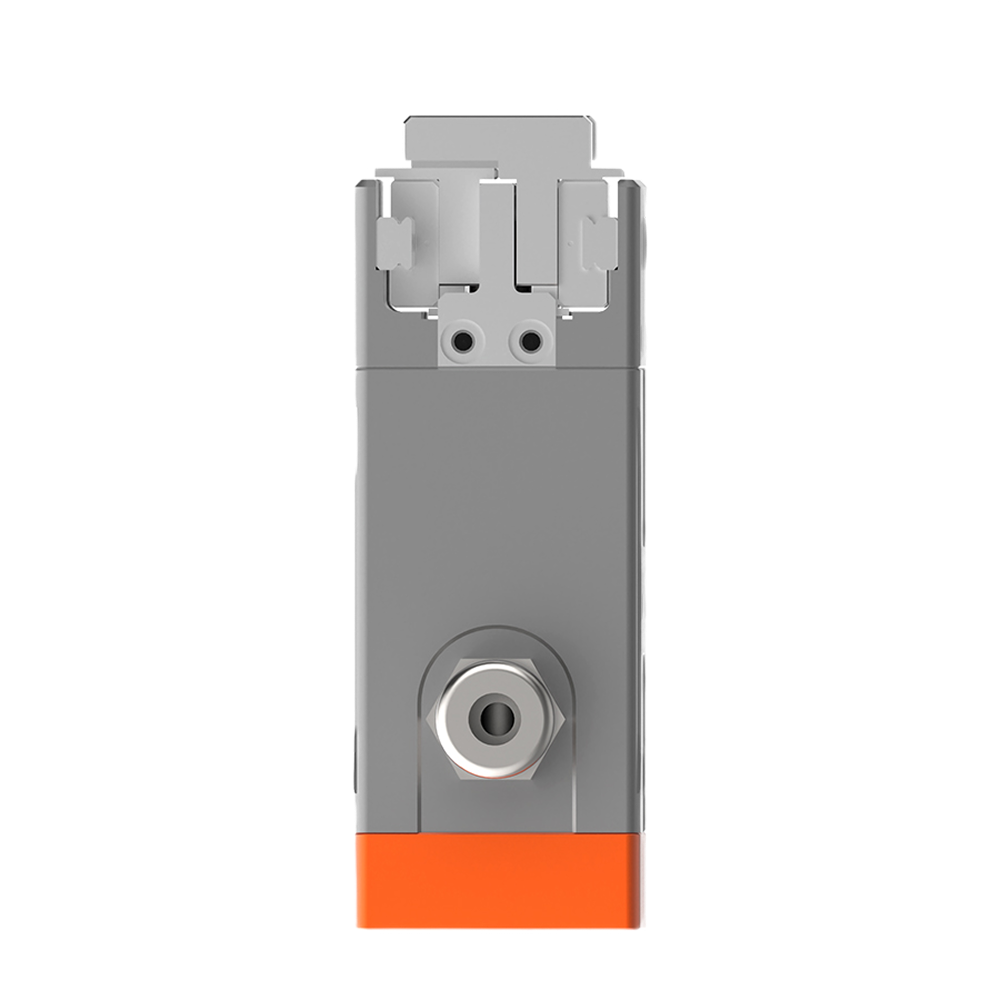

The Z-EFG-50 is a high-power electric gripper designed for industrial automation, assembly, and material handling. Featuring an adjustable gripping force of 15-50N and a 50mm total stroke, this gripper ensures precise and stable gripping of medium-to-large components. Its fast response times, ±0.02mm repeatability, and seamless SCARA integration make it ideal for high-speed production lines.

Model

Z-EFG-50

Total Stroke

50mm (adjustable)

Gripping Force

15-50N (adjustable)

Repeatability

±0.02mm

Gripping Weight

≤500g

Single Stroke Time

0.3s

Weight

0.70kg

Dimension

68 × 38 × 108mm

Rated Voltage

24V±10%

Peak Current

1A

Protection Class

IP20

Temperature Range

5-55°C

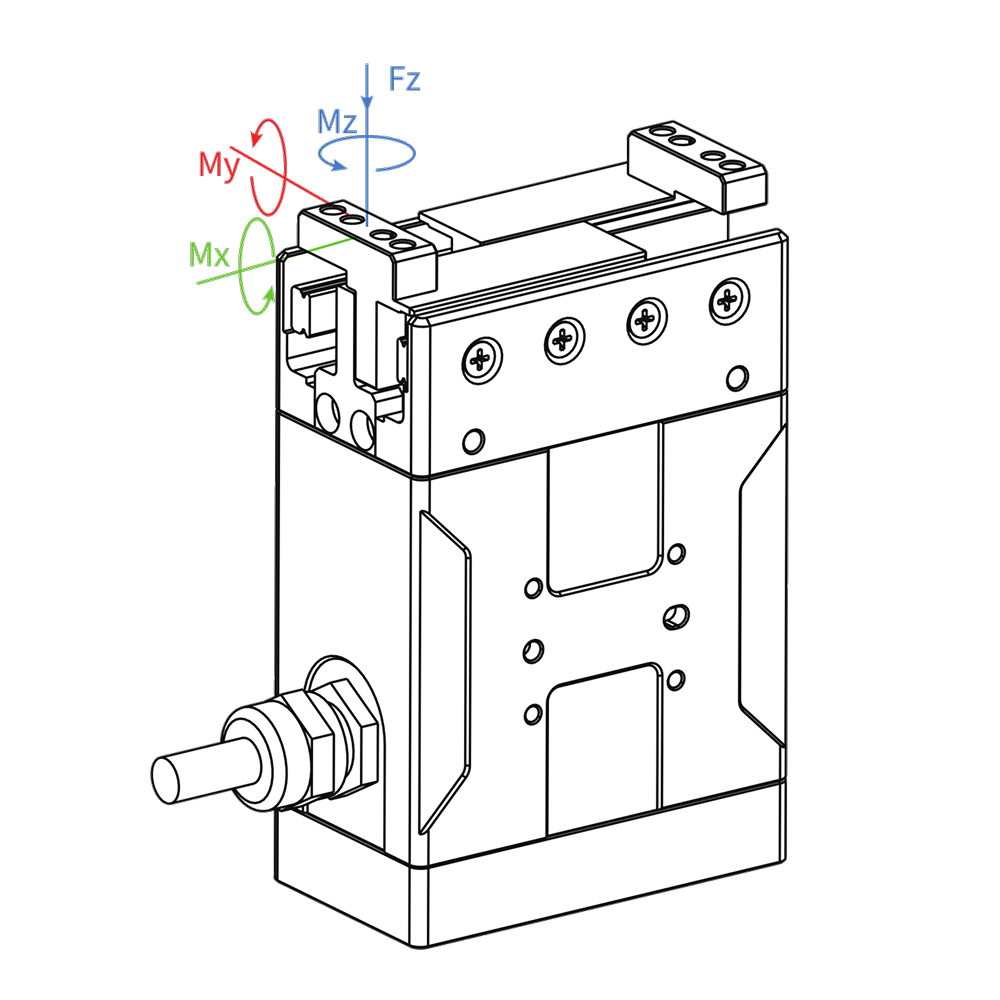

Force & Torque Capacity:

Fz (Axial Force)

200N

Mx (Torque around X-axis)

1.6 N·m

My (Torque around Y-axis)

1.2 N·m

Mz (Torque around Z-axis)

1.2 N·m

Gripper Compatibility
