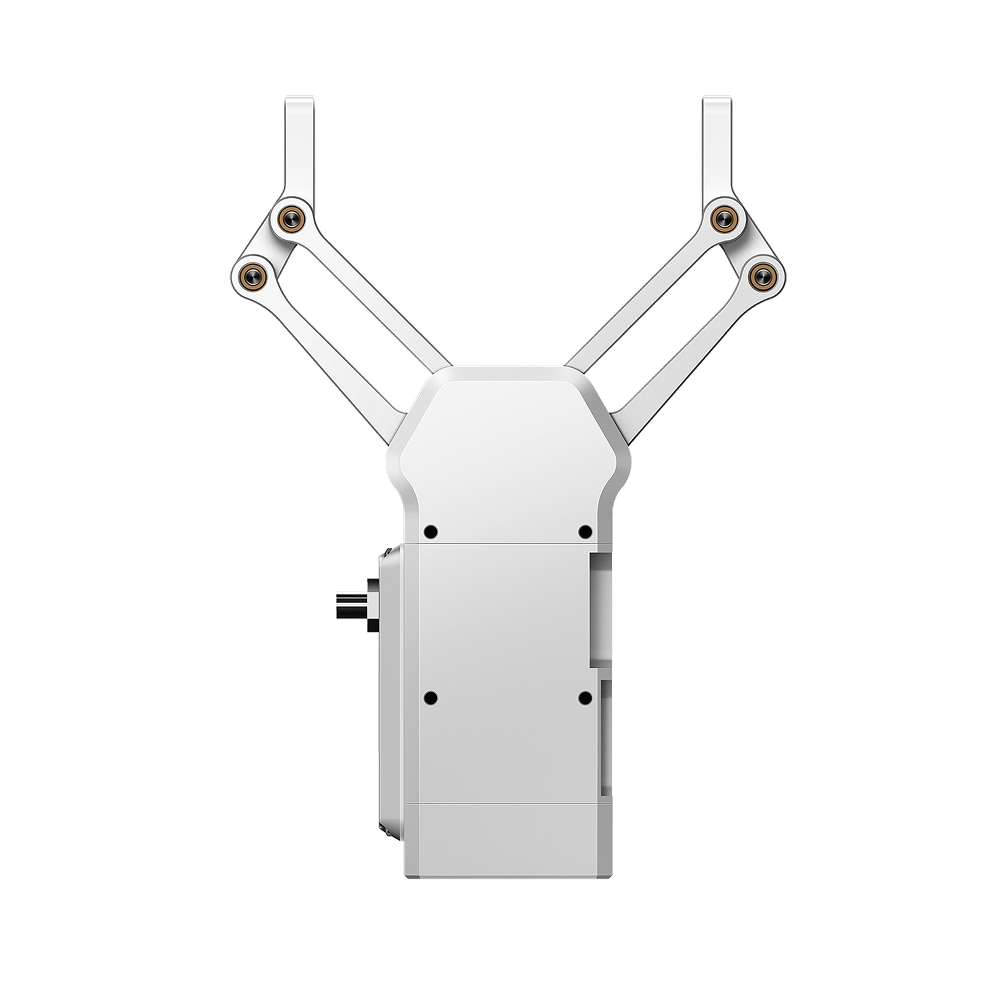

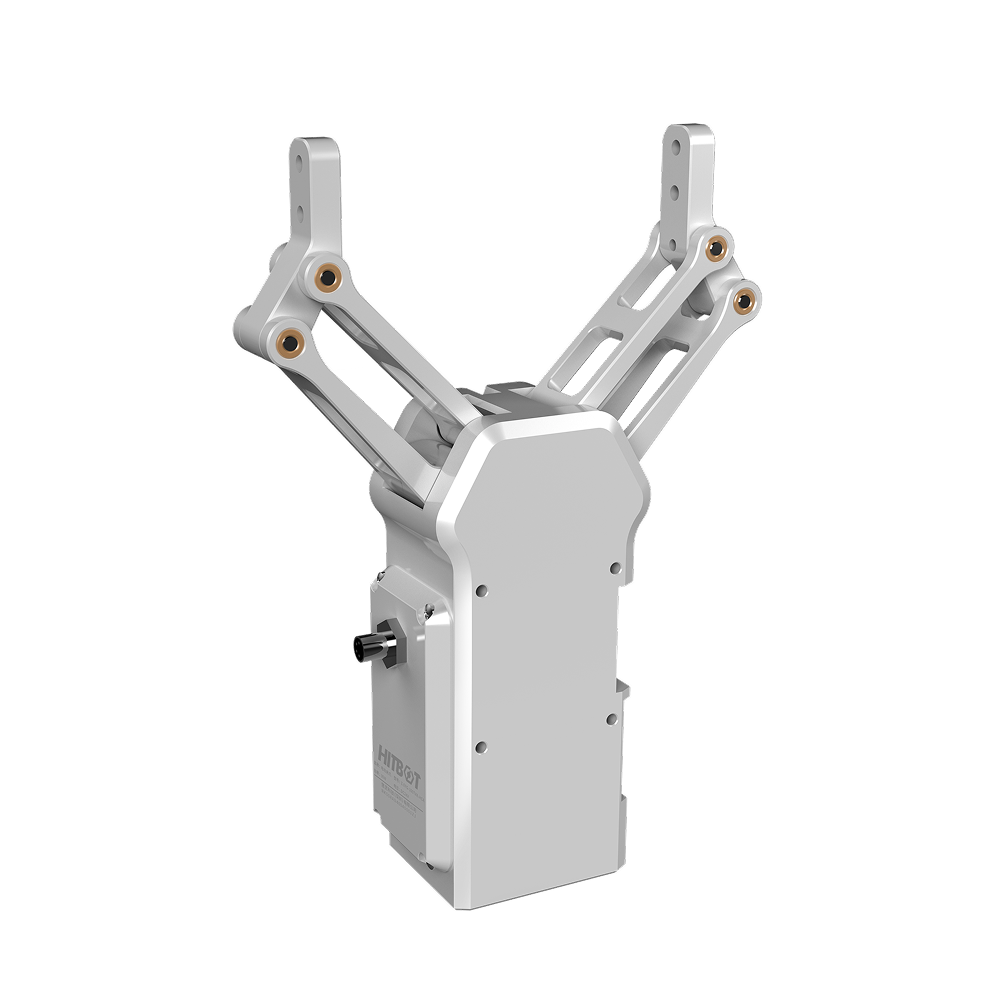

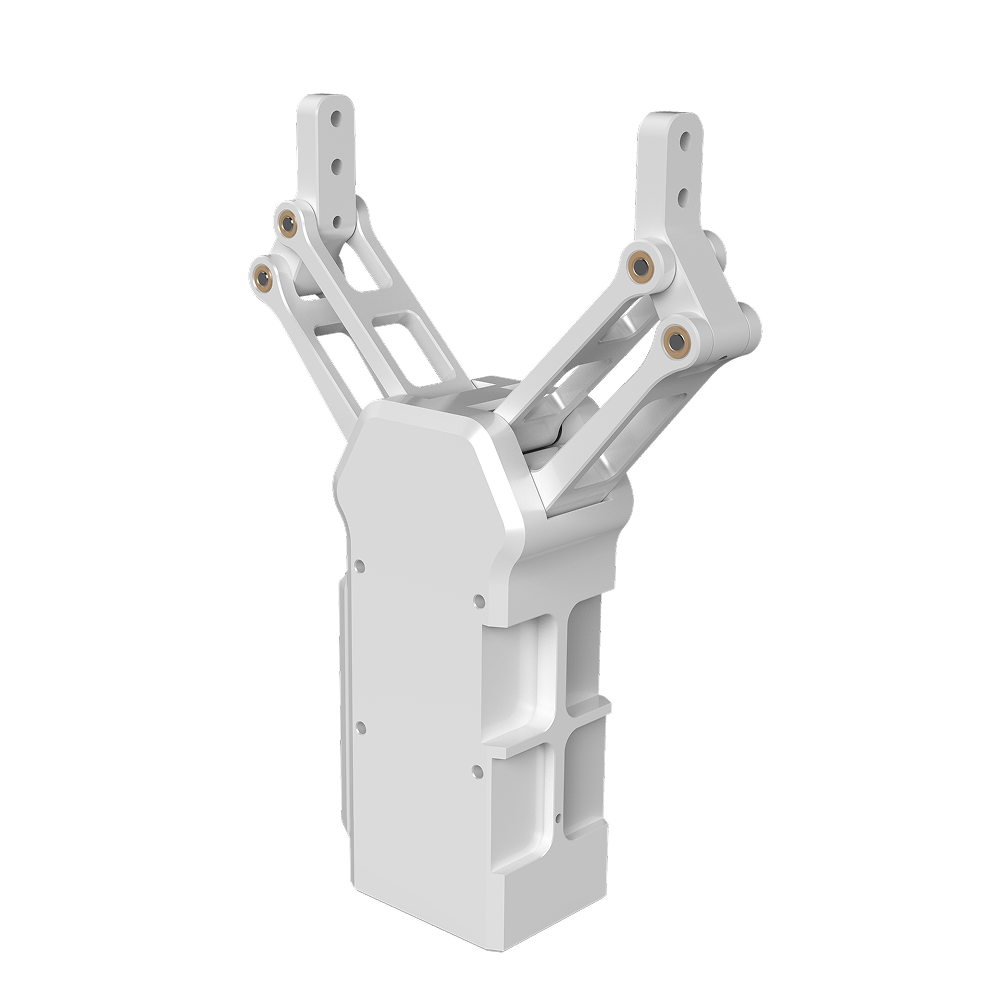

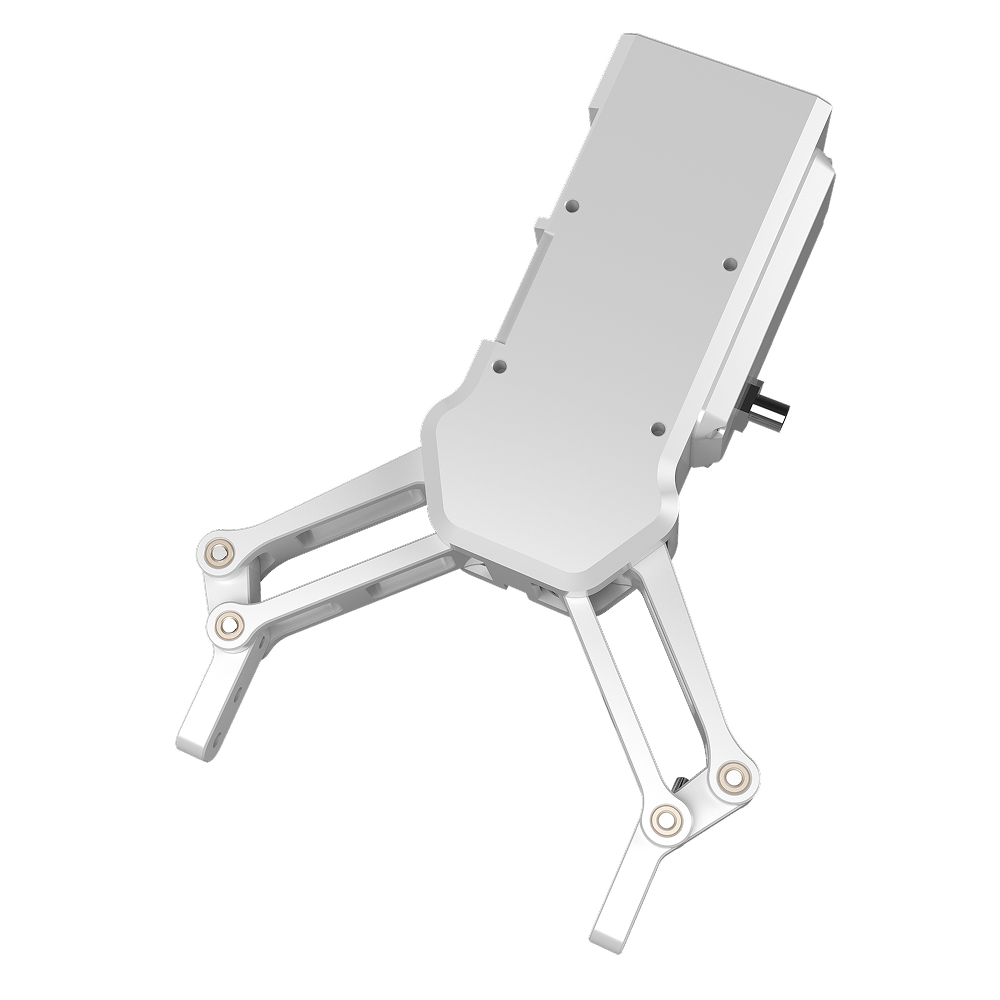

The Z-EFG-100 is a heavy-duty electric gripper designed for high-load automation, assembly, and material handling. With an adjustable gripping force of 35-60N and an extended 90mm stroke, it provides maximum flexibility for large-part handling and complex automation. Built for industrial SCARA robotic systems, it ensures fast response times, reliable performance, and high-precision gripping.

Model

Z-EFG-100

Total Stroke

90mm (adjustable)

Gripping Force

35-60N (adjustable)

Repeatability

±0.02mm

Gripping Weight

≤500g

Single Stroke Time

1s

Weight

0.925g

Dimension

203 × 144 × 45mm

Rated Voltage

24V±10%

Peak Current

1.5A

Protection Class

IP20

Temperature Range

5-55°C

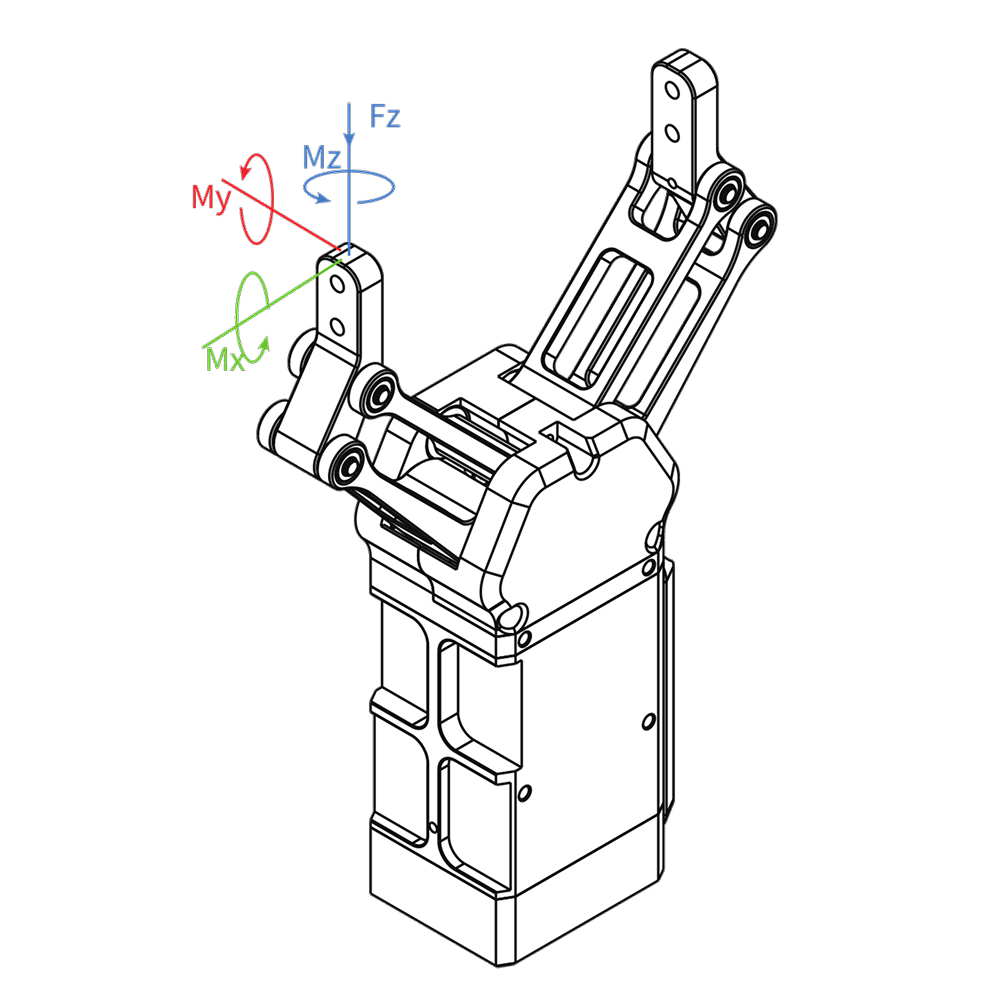

Force & Torque Capacity:

Fz (Axial Force)

150N

Mx (Torque around X-axis)

2 N·m

My (Torque around Y-axis)

1.5 N·m

Mz (Torque around Z-axis)

1.5 N·m

Gripper Compatibility
