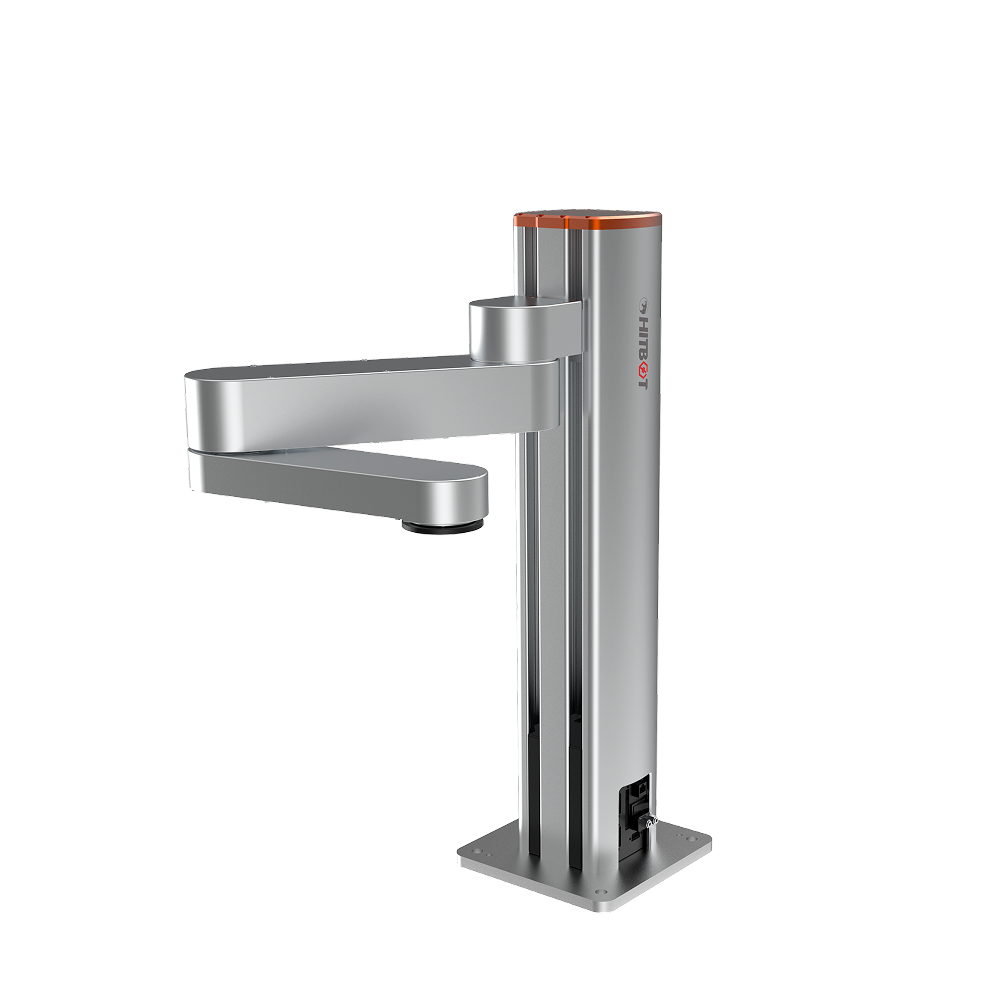

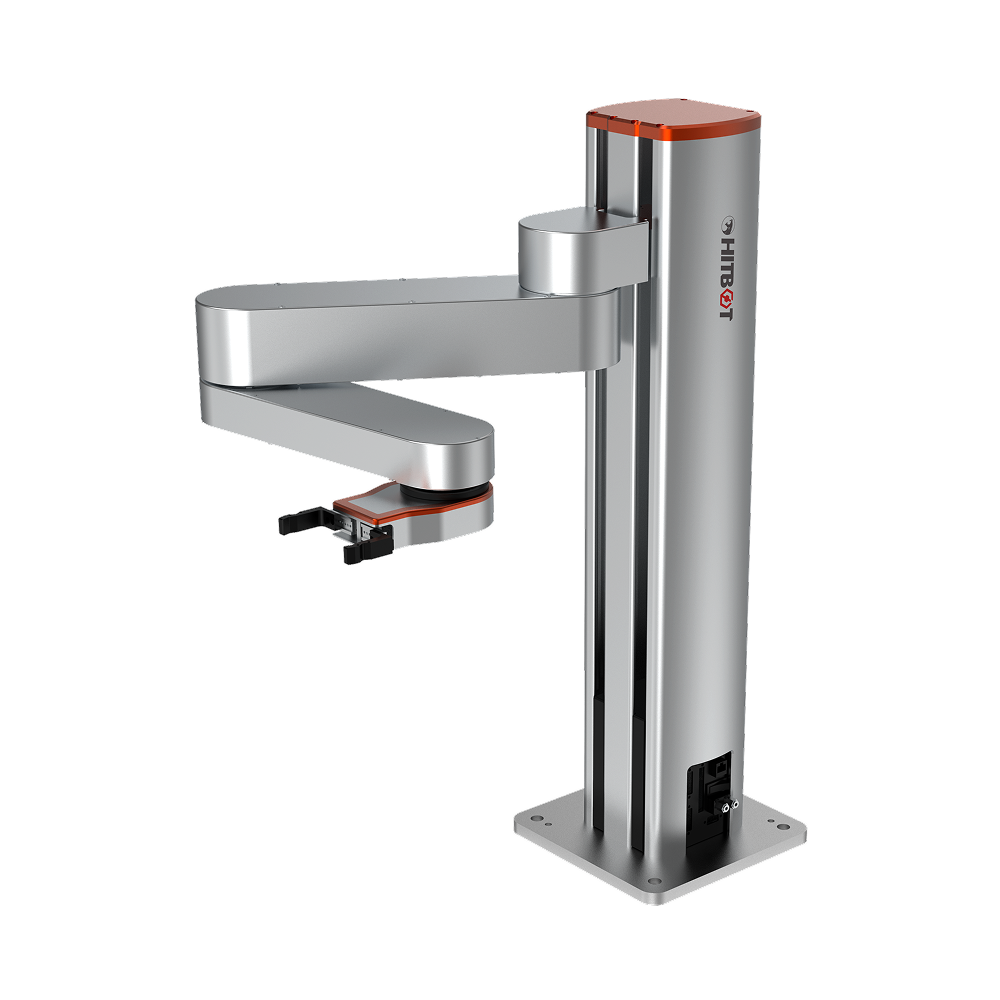

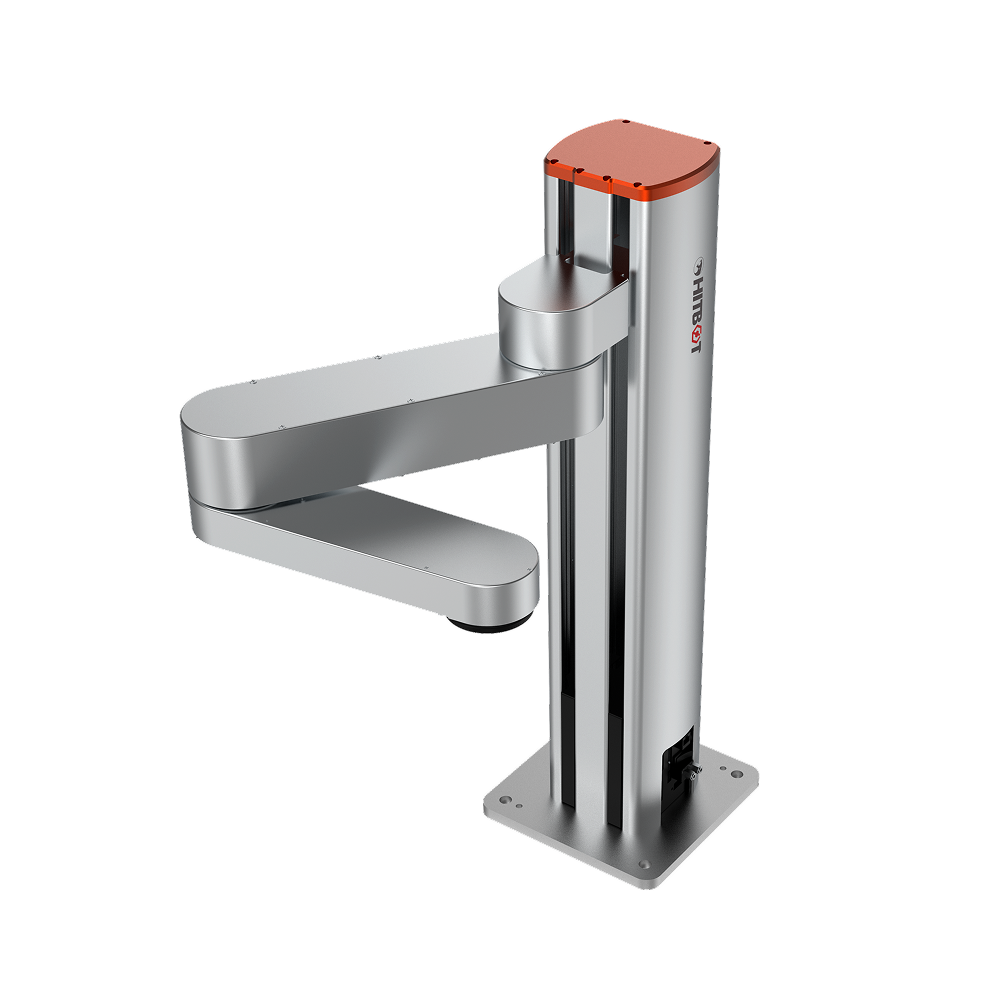

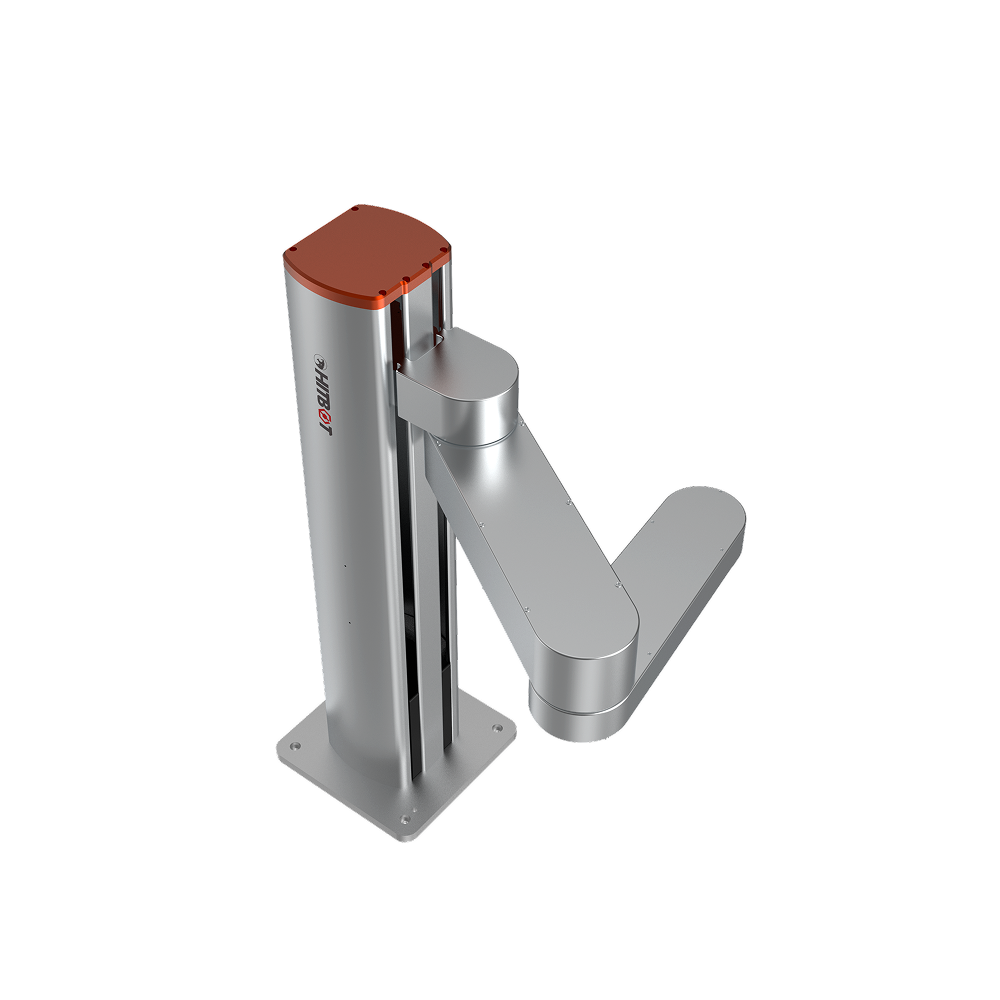

Z-Arm 4160 | Fast & Powerful SCARA Robot for High-Load Precision Automation

The Z-Arm 4160 is a high-speed SCARA robot engineered for precision automation, industrial assembly, and material handling. Designed for seamless integration into manufacturing and logistics workflows, it enhances efficiency, accelerates production cycles, and ensures consistent accuracy in high-speed automation environments.

Parameter

Specification

Model

Z-Arm 4160

1 axis arm length

325mm

2 axis arm length

275mm

Z axis stroke

410mm (Height Customizable)

R axis rotation range

±1080° or ±170° With Mechanical Limit

Linear speed

1500mm/s (Payload 4kg)

Repeatability

±0.05mm

Standard payload

3kg

Maximum payload

3.5kg

Power supply

220V/110V 50-60Hz

Communication

Ethernet

Use environment

0-45°C, RH20-80% (No Frost)

Robot arm height

830mm

Robot arm weight

28.5kg (410mm Stroke)

Collision detection

No

Drag teaching

Yes

Emergency stop

Yes

Payload Capacity:

3kg standard, 3.5kg max – Optimised for high-precision handling.

High-Speed Motion:

1500mm/s, enabling fast cycle times in industrial processes.

Extended Reach:

325mm + 275mm arm lengths, improving workspace coverage.

Durable & High-Power Design:

48VDC power system for efficient high-load automation.

Optimised for Industrial Use:

Ideal for assembly, machine tending, and precision material handling.

Gripper Compatibility

Z-EFG-8S
Z-EFG-12
Z-EFG-20S
Z-EFG-20
Z-EFG-30
Z-EFG-50
Z-EFG-100
Z-ERG-20
Z-ERG-20-100
