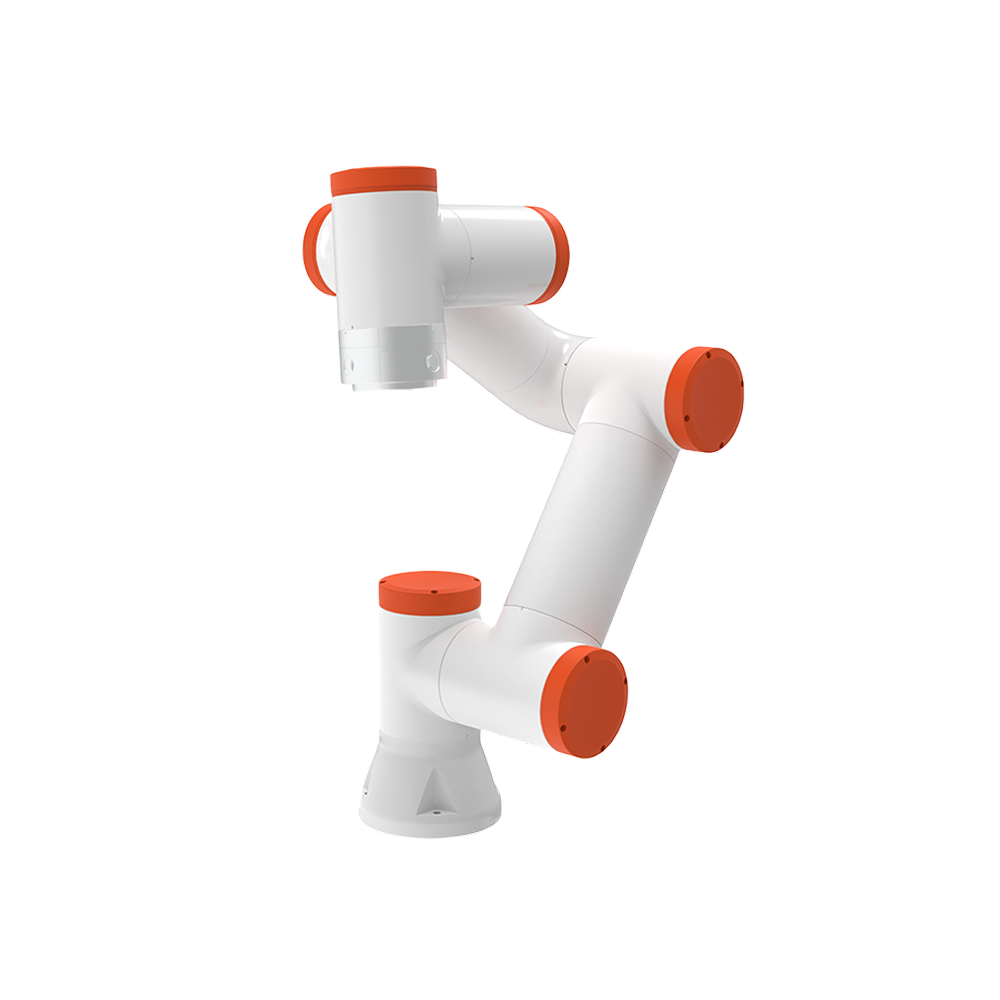

The Z-Arm S622 is a lightweight, high-precision collaborative robot designed for small-scale automation, including electronics assembly, laboratory automation, and delicate material handling. With a 3kg payload, ±0.02mm repeatability, and a 622mm working range, this compact cobot provides fast, reliable, and safe automation in precision-driven applications.

Payload

3kg

Working Range

622mm

Repeatability

±0.02mm

Degree of Freedom

Typical TCP Speed

1m/s

Protection Level

IP54

Installation Orientation

Upright / Vertical Side / Inverted Mounting

Communication

I/O, TCP/IP, Modbus TCP/RTU, PROFINET

Joint Range of Motion

Axis 1: ±175°
Axis 2: +85°, -265°
Axis 3: ±150°
Axis 4: +85°, -265°
Axis 5: ±175°
Axis 6: ±175°

End I/O Port

Digital Input: 2
Digital Output: 2
Analog Input: 1
Analog Output: 1

Use Environment

- Away from vibrations (≤0.5G)
- Avoid corrosive and explosive gases
- Avoid dust, smoke, and water
- Avoid unstable current conditions

Gripper Compatibility

Z-EFG-C35

Z-EFG-C50

Z-EFG-C65

Z-EFG-FS

Z-EFG-L

Z-EFG-R

Custom Automated Machinery Design

The Z-Arm S622 enables high-precision, small-scale automation with compact, lightweight handling. Ideal for custom robotic solutions, it seamlessly integrates into electronics assembly, medical technology, and delicate material handling workflows.

Learn More

Robotic Automation

Designed for safe, efficient, and human-friendly automation, the Z-Arm S622 provides flexible and adaptive robotic solutions for precision assembly, laboratory automation, and pharmaceutical production.

Learn More

Vision Inspection Systems

With advanced accuracy and smooth motion control, the Z-Arm S622 integrates seamlessly with AI-powered vision systems, enhancing defect detection, quality inspection, and micro-assembly applications in electronics and medical manufacturing.

Learn More
