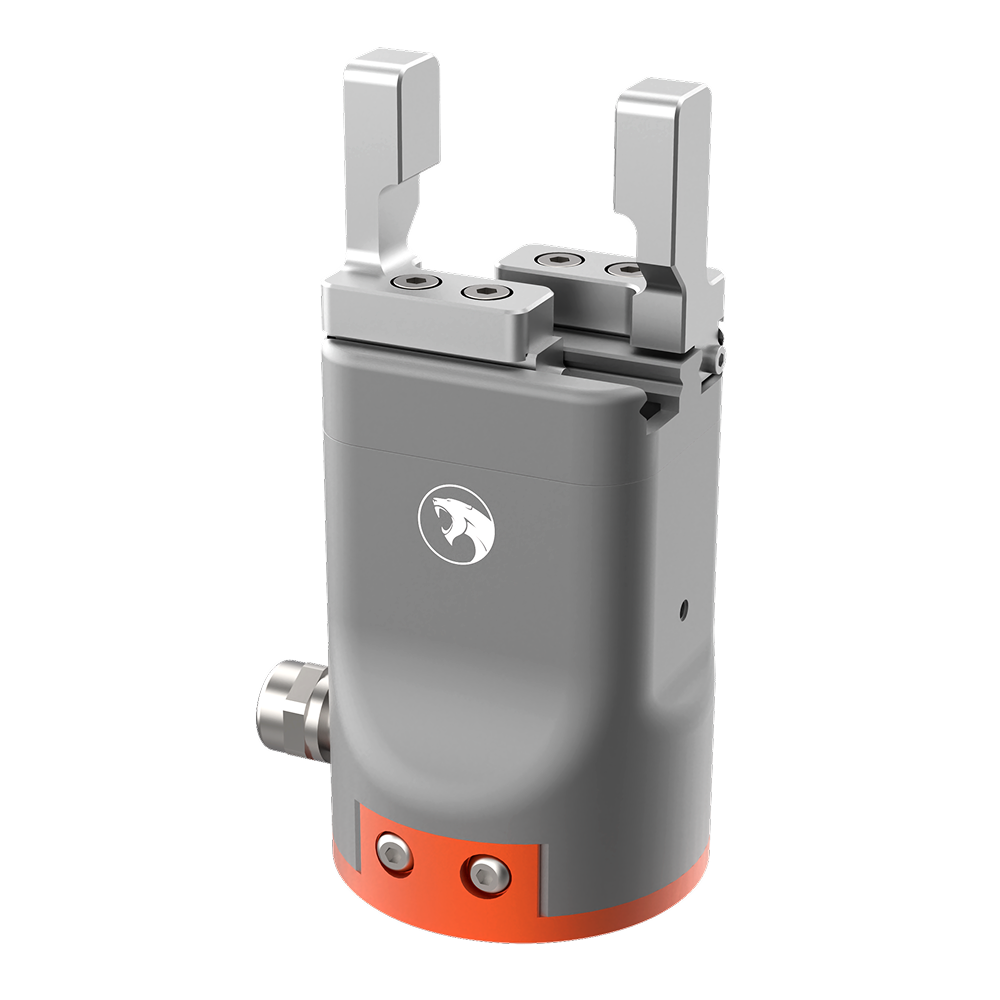

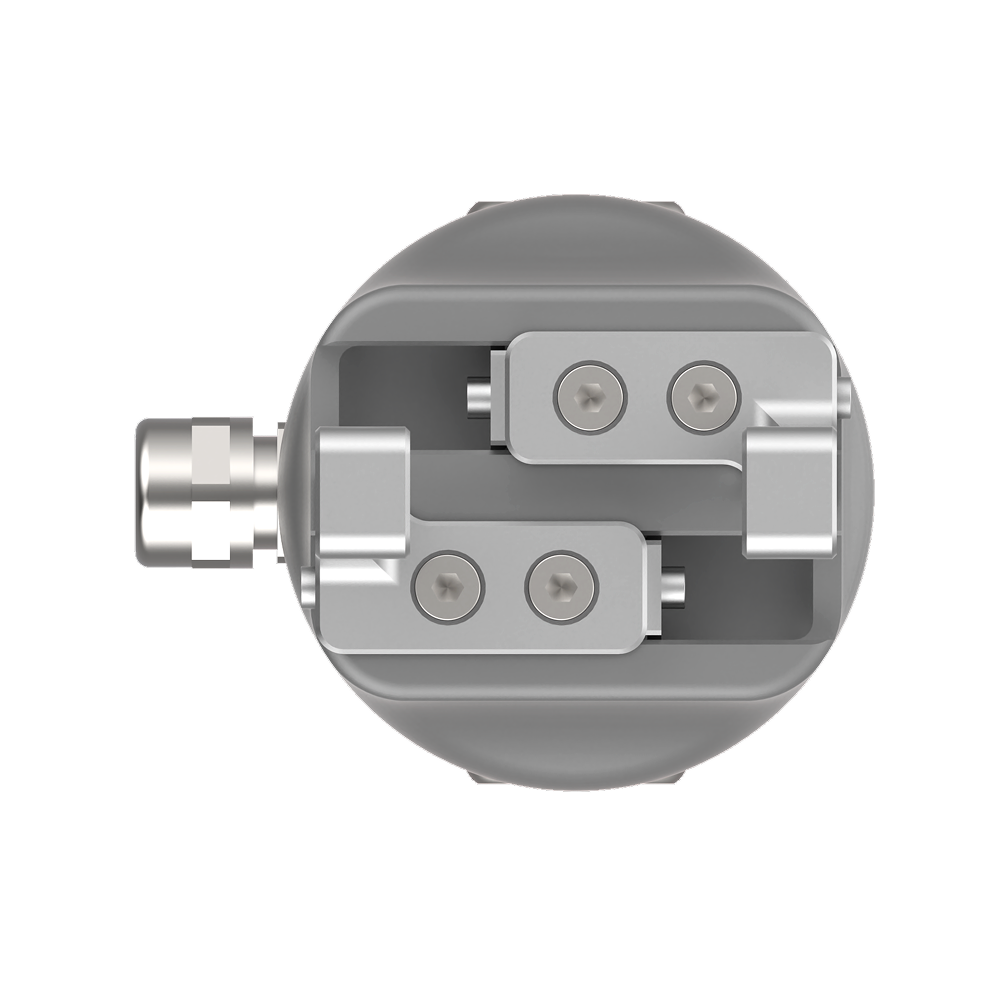

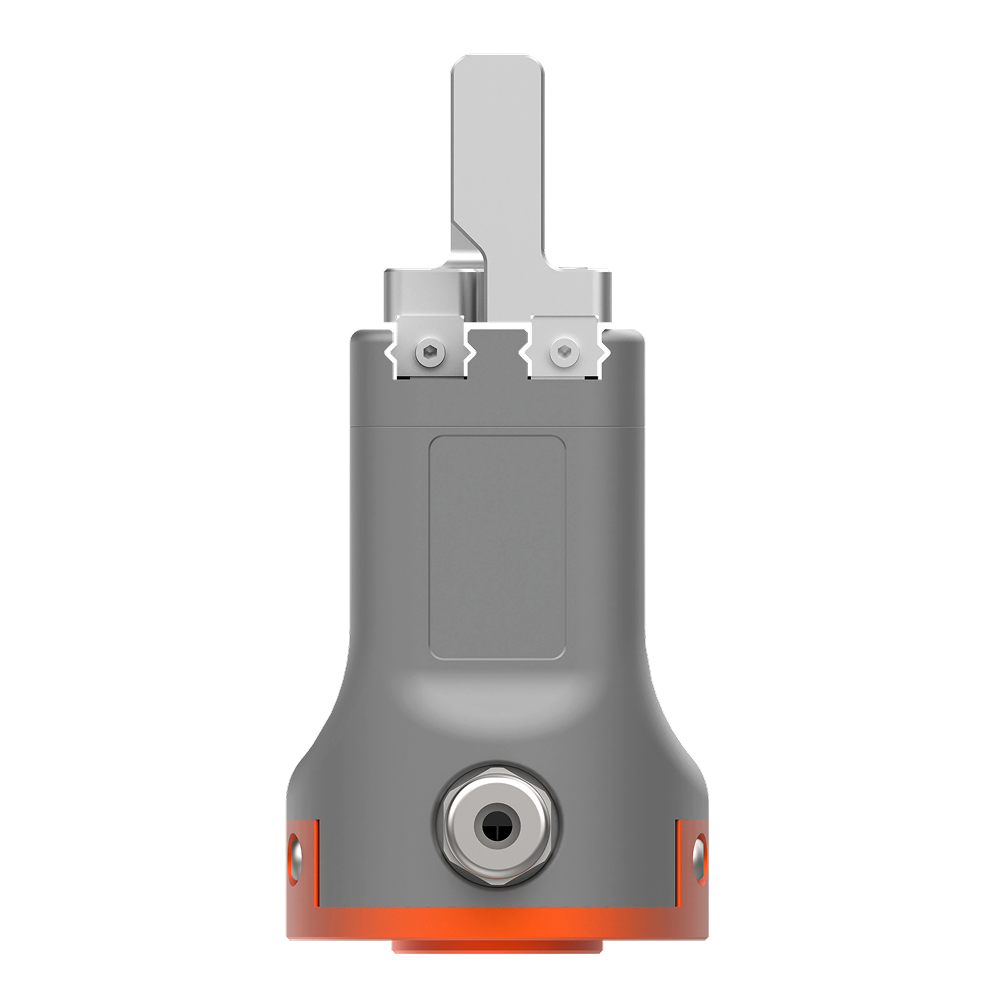

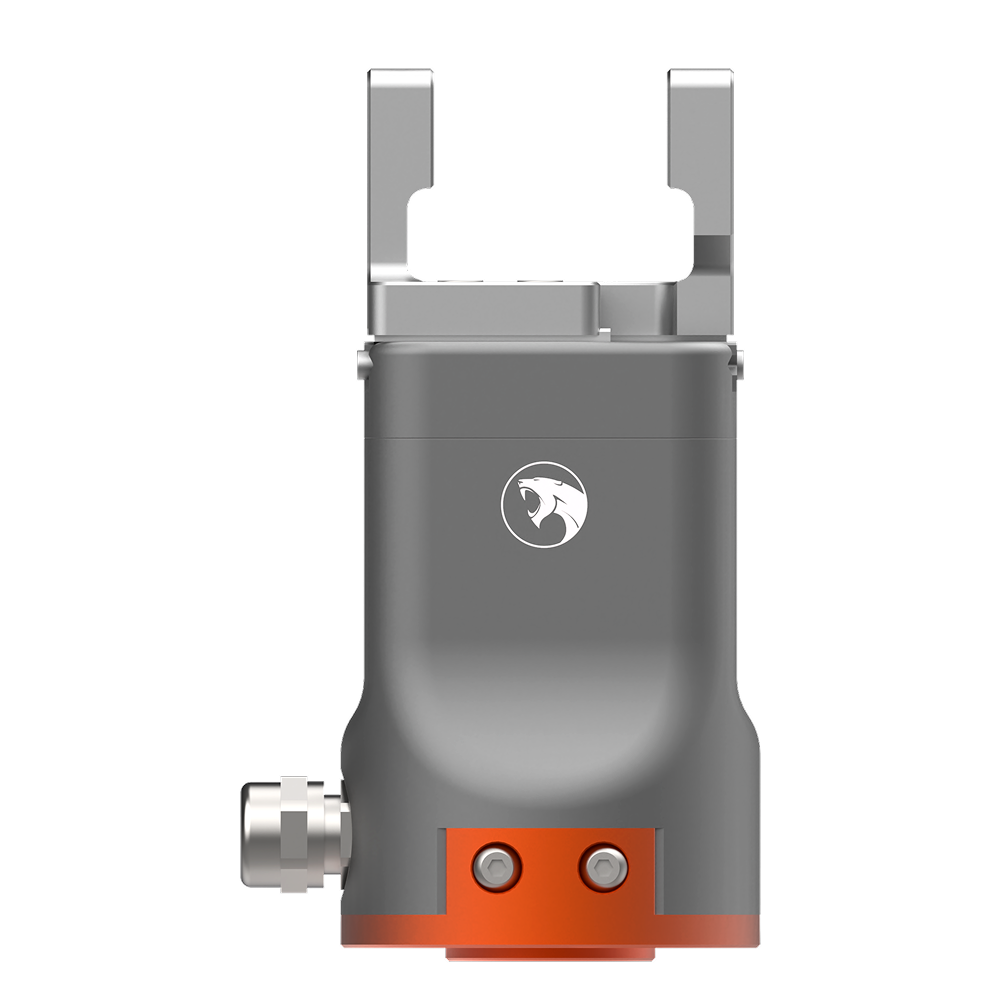

The Z-EFG-C35 is a compact collaborative electric gripper engineered for precision handling in cobot- assisted automation. With an adjustable clamping force of 15-50N, 35mm adjustable stroke, and high- precision repeatability (±0.03mm), this gripper delivers secure, adaptive, and efficient gripping for delicate and industrial applications. Its IP54 protection rating ensures safe and reliable operation in dynamic environments.

Model

Z-EFG-C35

Total Stroke

35mm (adjustable)

Clamping Force

15-50N (adjustable)

Repeatability

±0.03mm

Gripping Weight

≤1kg

Single Stroke Time

0.5s

Weight

0.5kg

Dimension

63 × 63 × 92mm

Rated Voltage

24V±10%

Peak Current

1A

Protection Class

IP54

Temperature Range

5-55°C

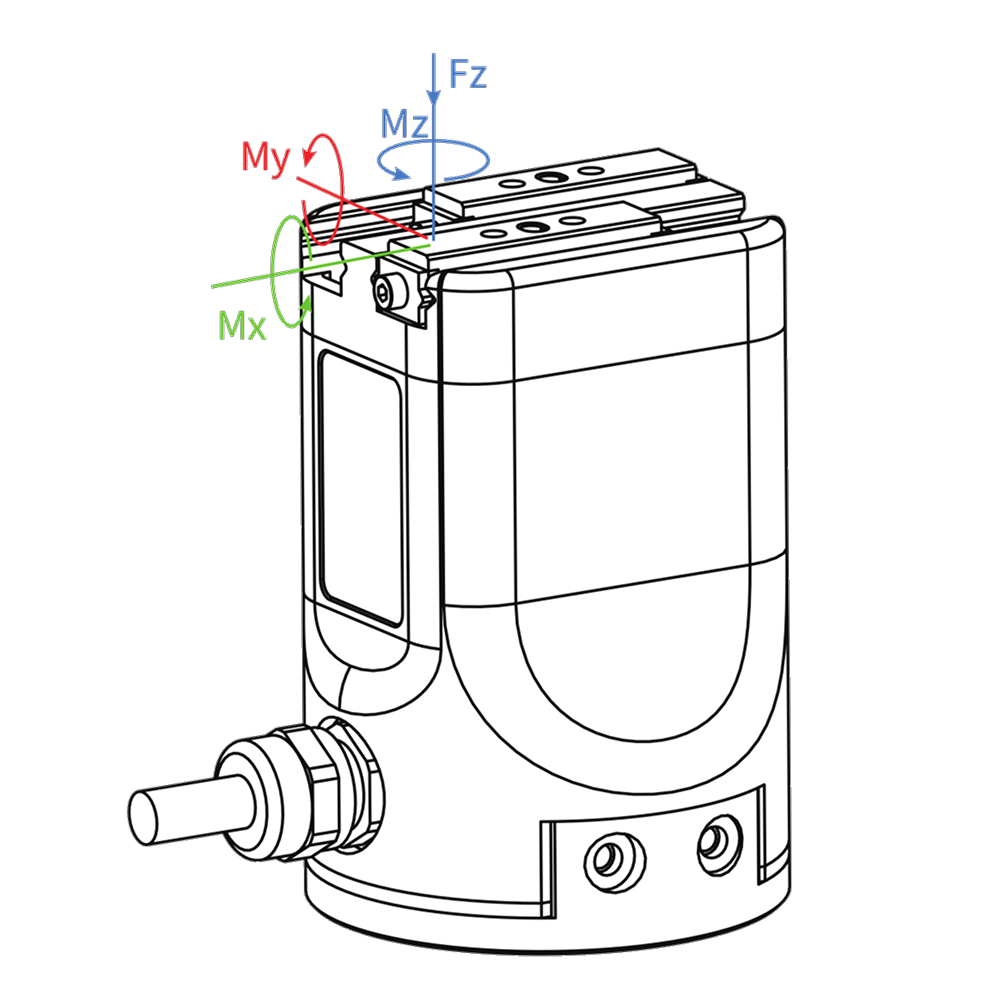

Force & Torque Capacity:

Fz (Axial Force)

150N

Mx (Torque around X-axis)

2.5 N·m

My (Torque around Y-axis)

2 N·m

Mz (Torque around Z-axis)

3 N·m

Gripper Compatibility
