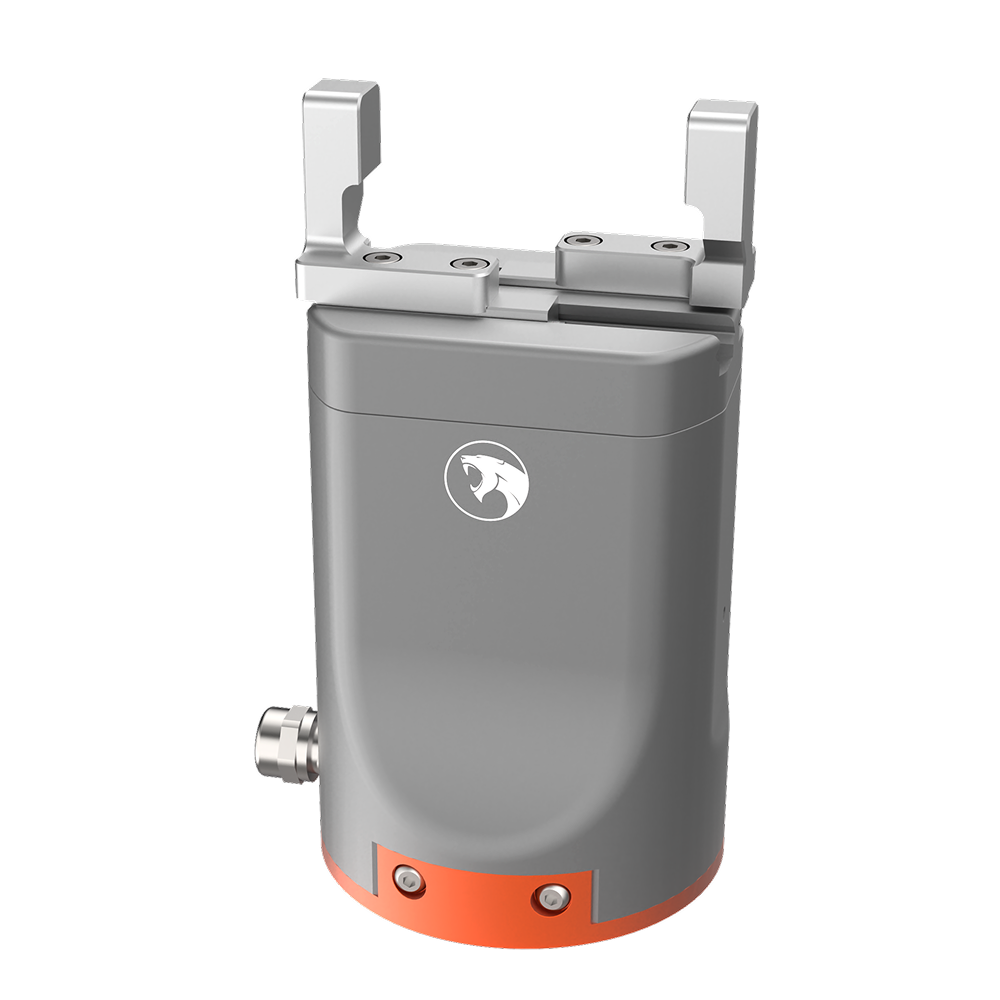

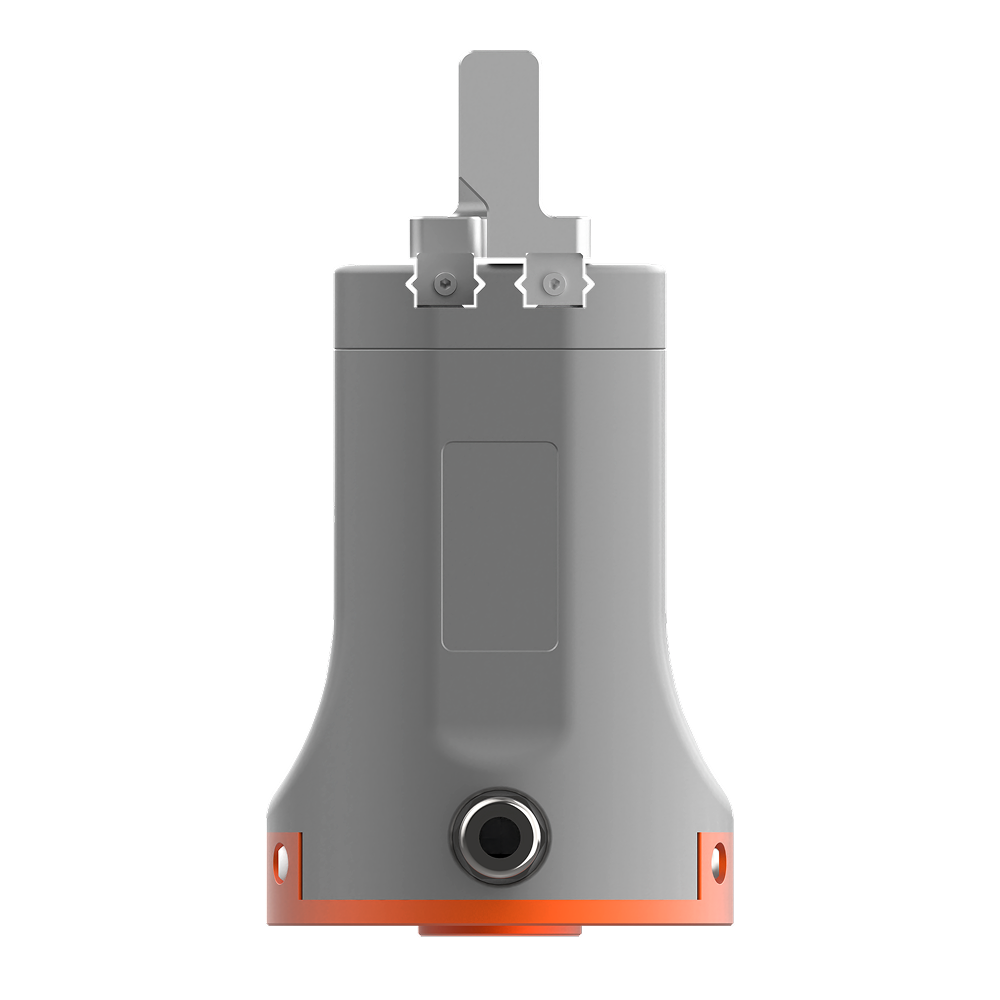

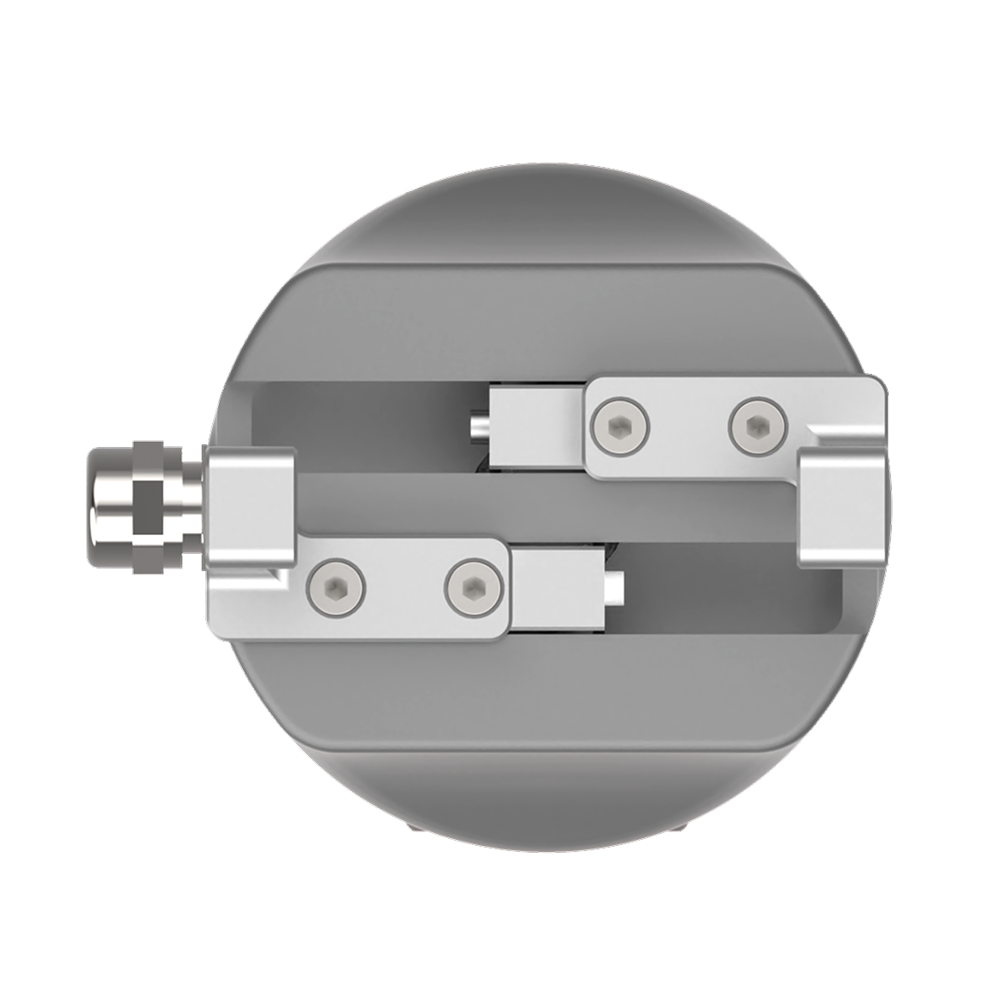

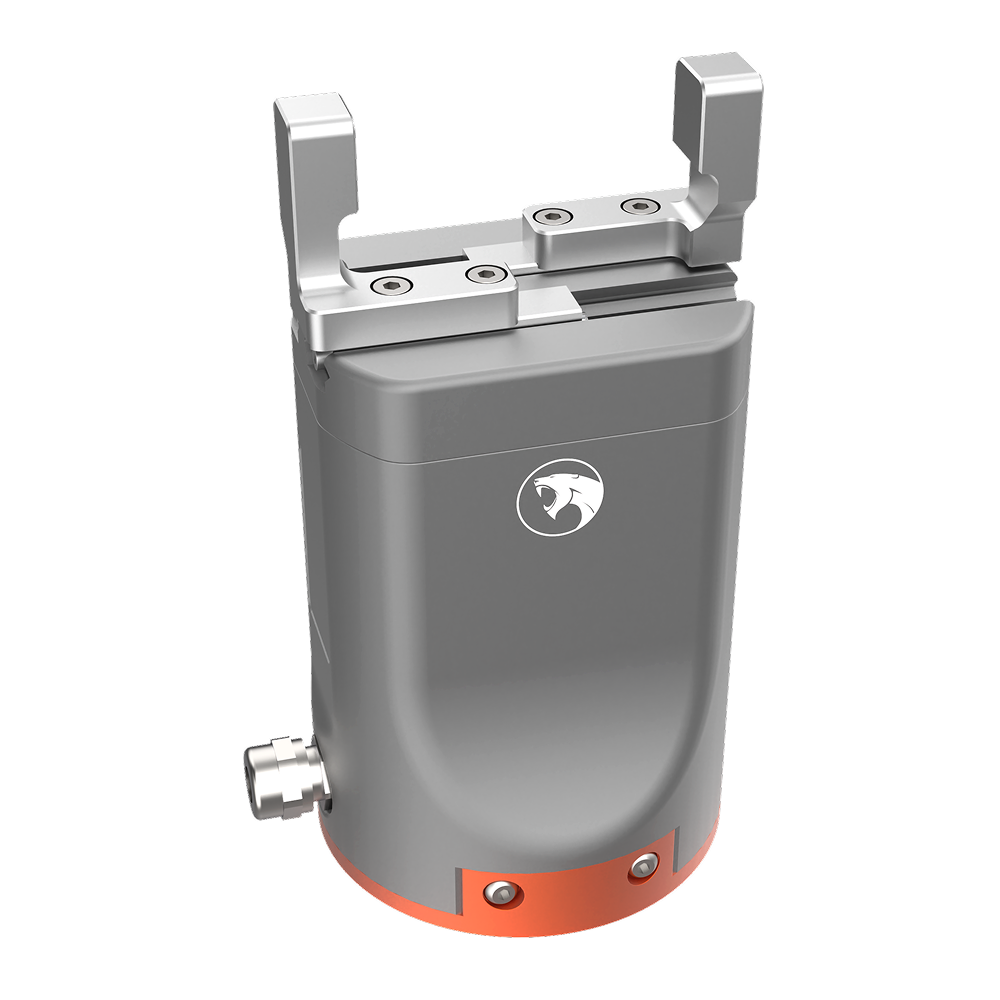

The Z-EFG-C65 is a high-force cobot gripper, designed for large-scale material handling and industrial applications. With an impressive 60-300N adjustable clamping force, a 65mm stroke, and ±0.03mm repeatability, it enables secure and stable grasping of heavy loads. Its rugged IP54-rated build ensures durability in demanding automation tasks.

Model

Z-EFG-C65

Total Stroke

65mm (adjustable)

Clamping Force

60-300N (adjustable)

Repeatability

±0.03mm

Gripping Weight

≤6kg

Single Stroke Time

0.85s

Weight

1.5kg

Dimension

90 × 90 × 115mm

Rated Voltage

24V±10%

Peak Current

2A

Protection Class

IP54

Temperature Range

5-55°C

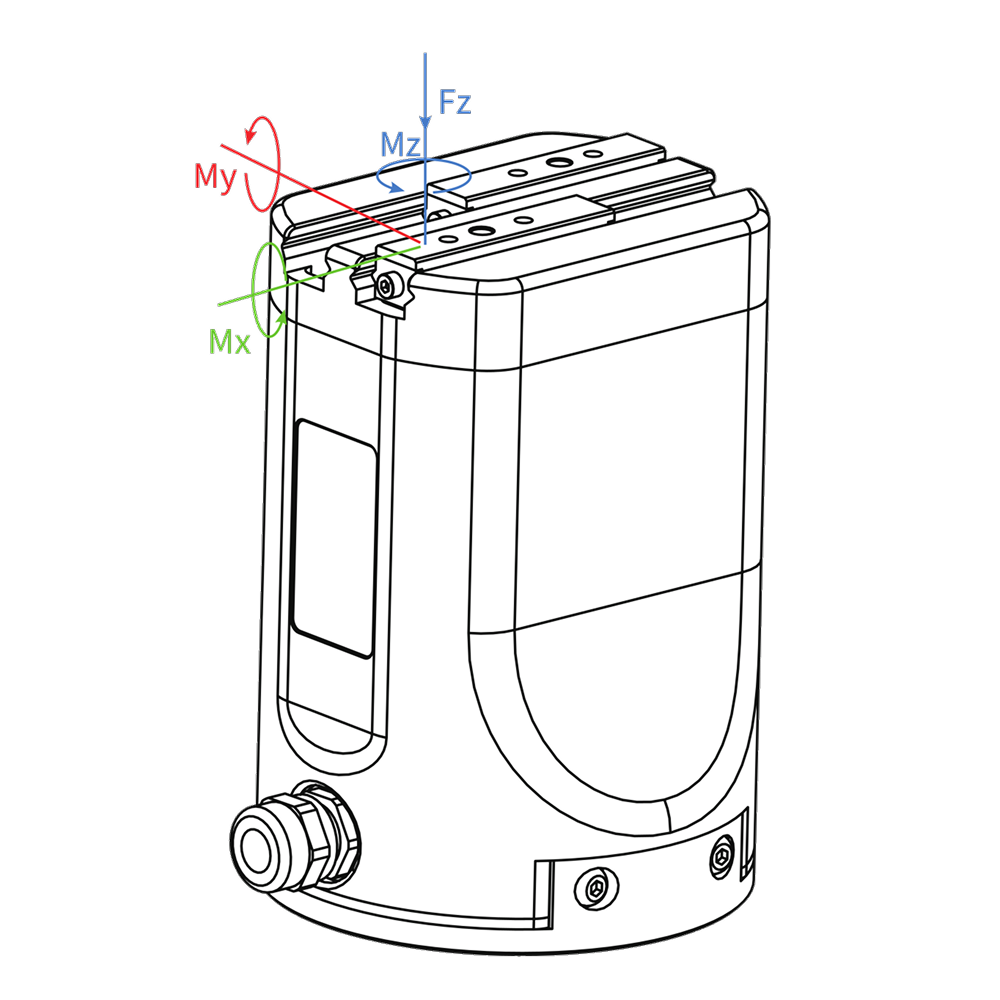

Force & Torque Capacity:

Fz (Axial Force)

600N

Mx (Torque around X-axis)

15 N·m

My (Torque around Y-axis)

15 N·m

Mz (Torque around Z-axis)

15 N·m

Gripper Compatibility
