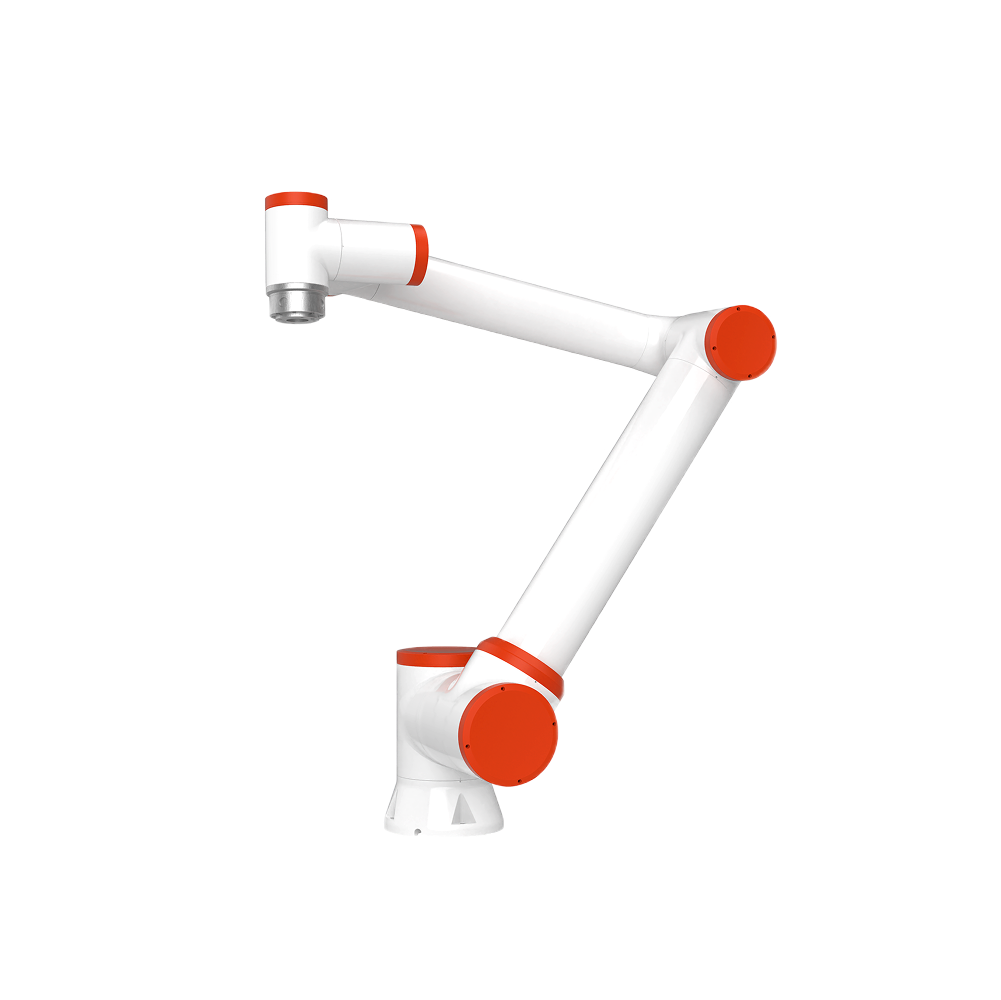

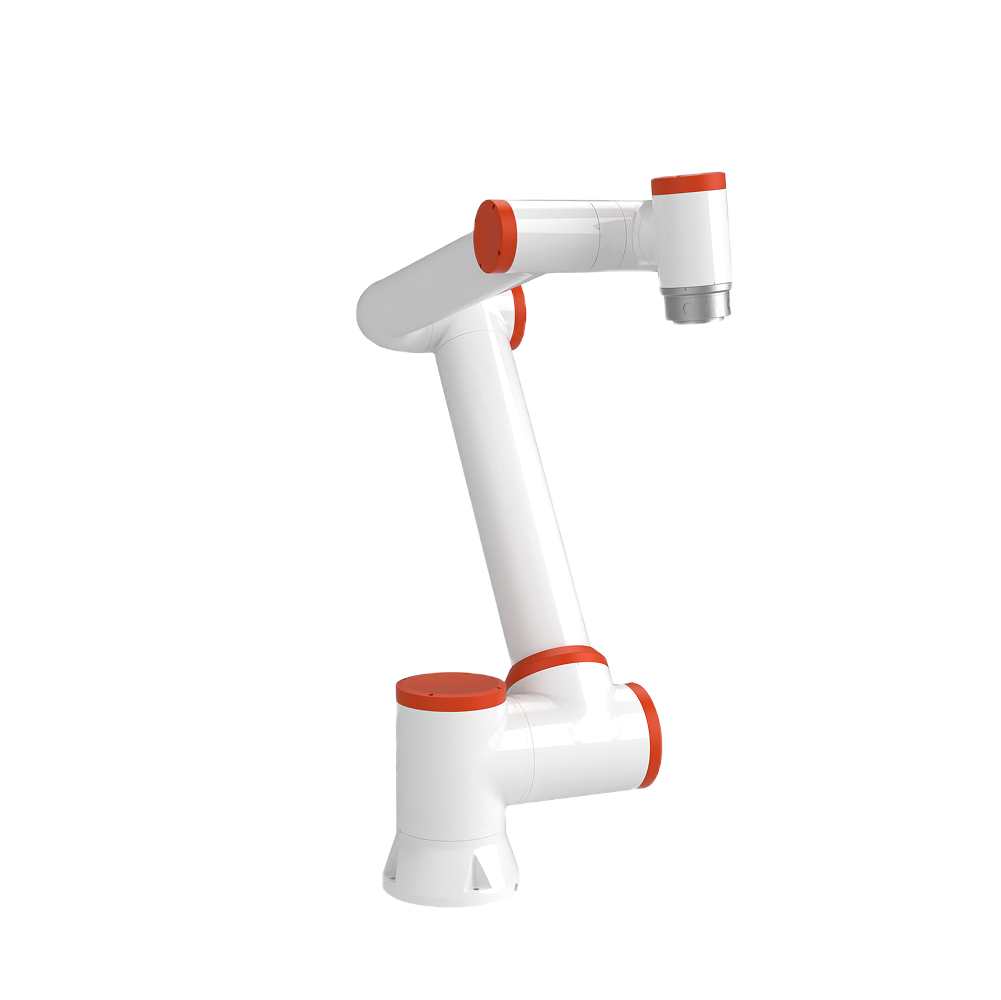

The Z-Arm S1400 is a high-reach, high-payload collaborative robot designed for large-scale industrial automation, assembly, and material handling. With a 1400mm working range, 10kg payload capacity, and ±0.05mm repeatability, this six-axis cobot ensures stable, precise, and high-speed operations across various industries, including automotive, logistics, and general manufacturing. Its IP54 protection rating and multiple mounting options provide flexibility for deployment in demanding automation environments.

Payload

10kg

Working Range

1400mm

Repeatability

±0.05mm

Degree of Freedom

Typical TCP Speed

1m/s

Protection Level

IP54

Installation Orientation

Upright / Vertical Side / Inverted Mounting

Communication

I/O, TCP/IP, Modbus TCP/RTU, PROFINET

Joint Range of Motion

Axis 1: ±175°
Axis 2: +85°, -265°
Axis 3: ±160°
Axis 4: +85°, -265°
Axis 5: ±175°
Axis 6: ±175°

End I/O Port

Digital Input: 2
Digital Output: 2
Analog Input: 1
Analog Output: 1

Use Environment

- Away from vibrations (≤0.5G)
- Avoid corrosive and explosive gases
- Avoid dust, smoke, and water
- Avoid unstable current conditions

Gripper Compatibility

Z-EFG-C35

Z-EFG-C50

Z-EFG-C65

Z-EFG-FS

Z-EFG-L

Z-EFG-R

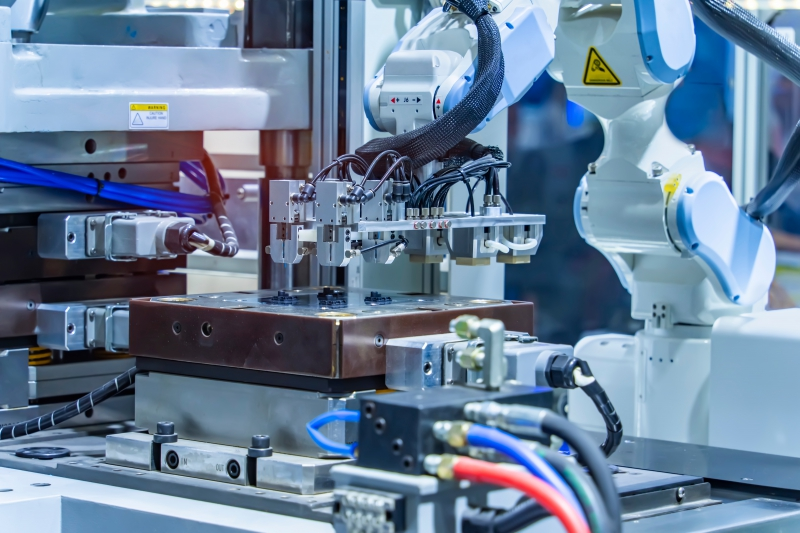

Custom Automated Machinery Design

The Z-Arm S1400 is ideal for custom automation solutions, offering long-reach, high-speed handling, and precision integration into assembly lines, robotic cells, and logistics workflows.

Learn More

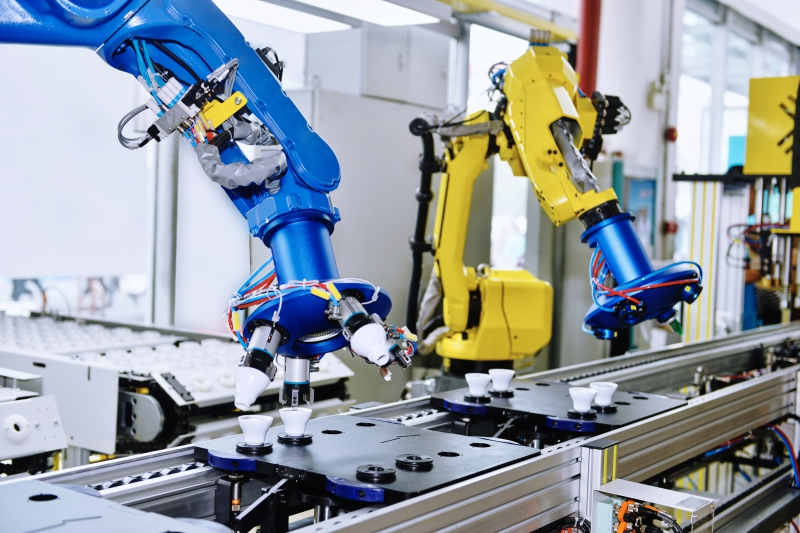

Robotic Automation

Designed for large-scale robotic automation, the Z-Arm S1400 enhances industrial workflows, reduces manual labor, and ensures consistent, high-precision manufacturing and material handling.

Learn More

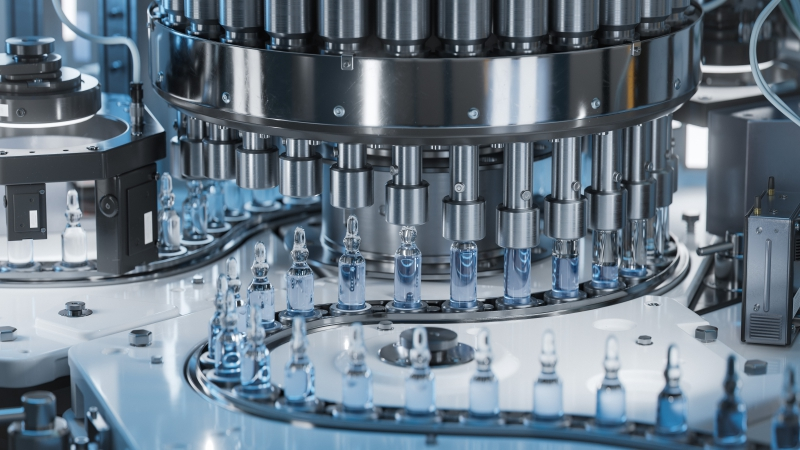

Vision Inspection Systems

With advanced compatibility for AI-driven vision inspection, the Z-Arm S1400 enables automated defect detection and precision quality control in high-speed production environments.

Learn More
