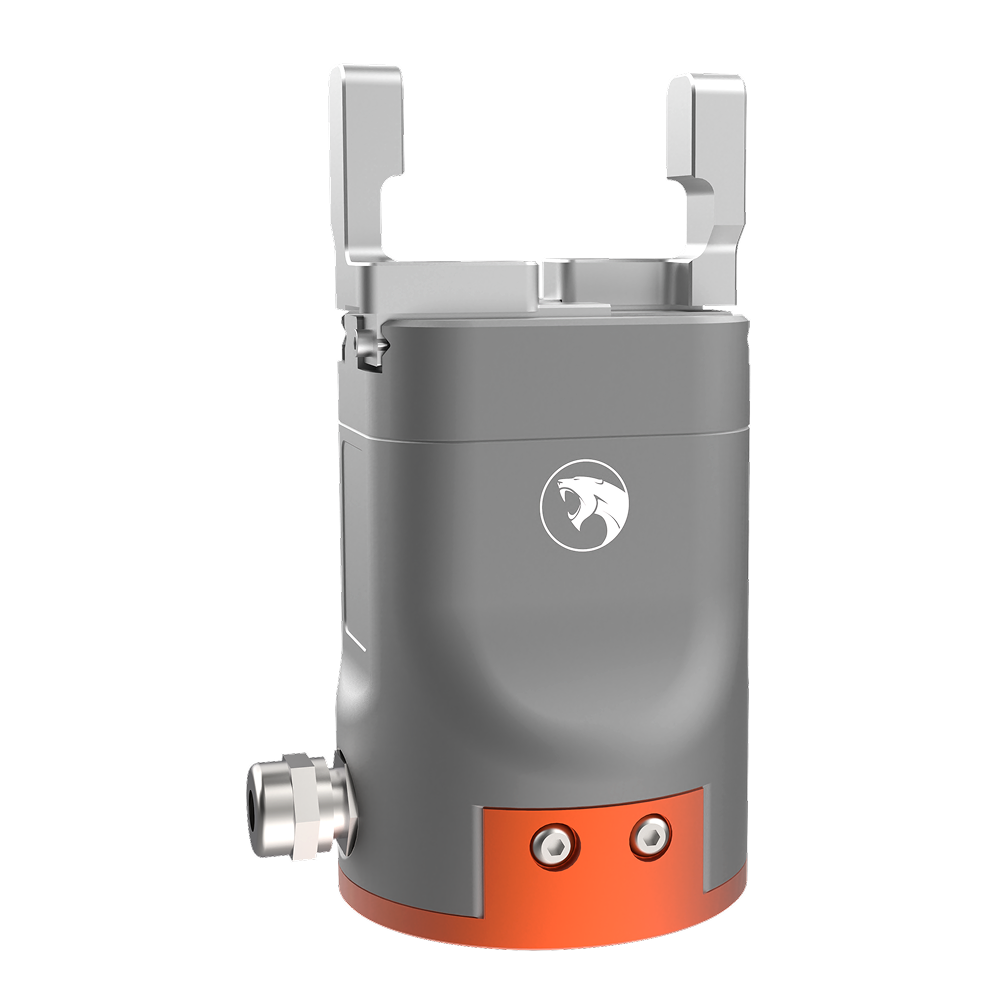

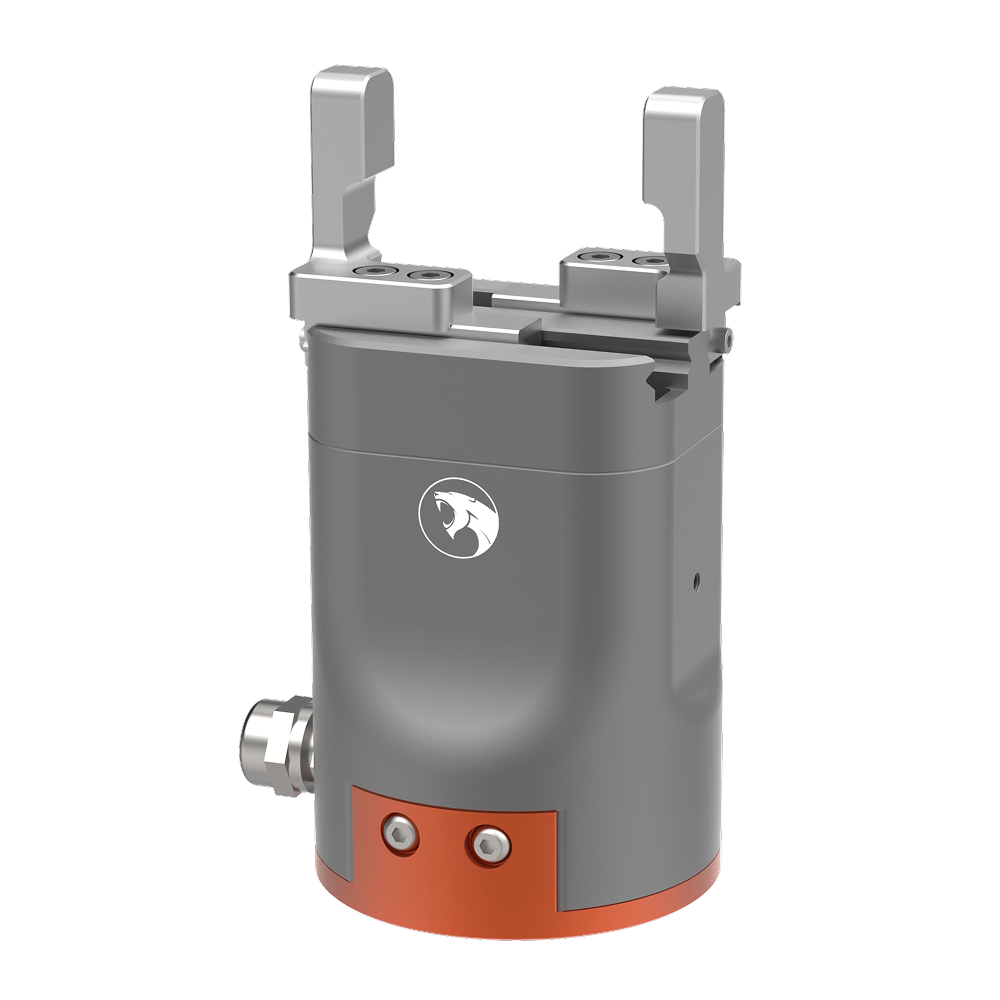

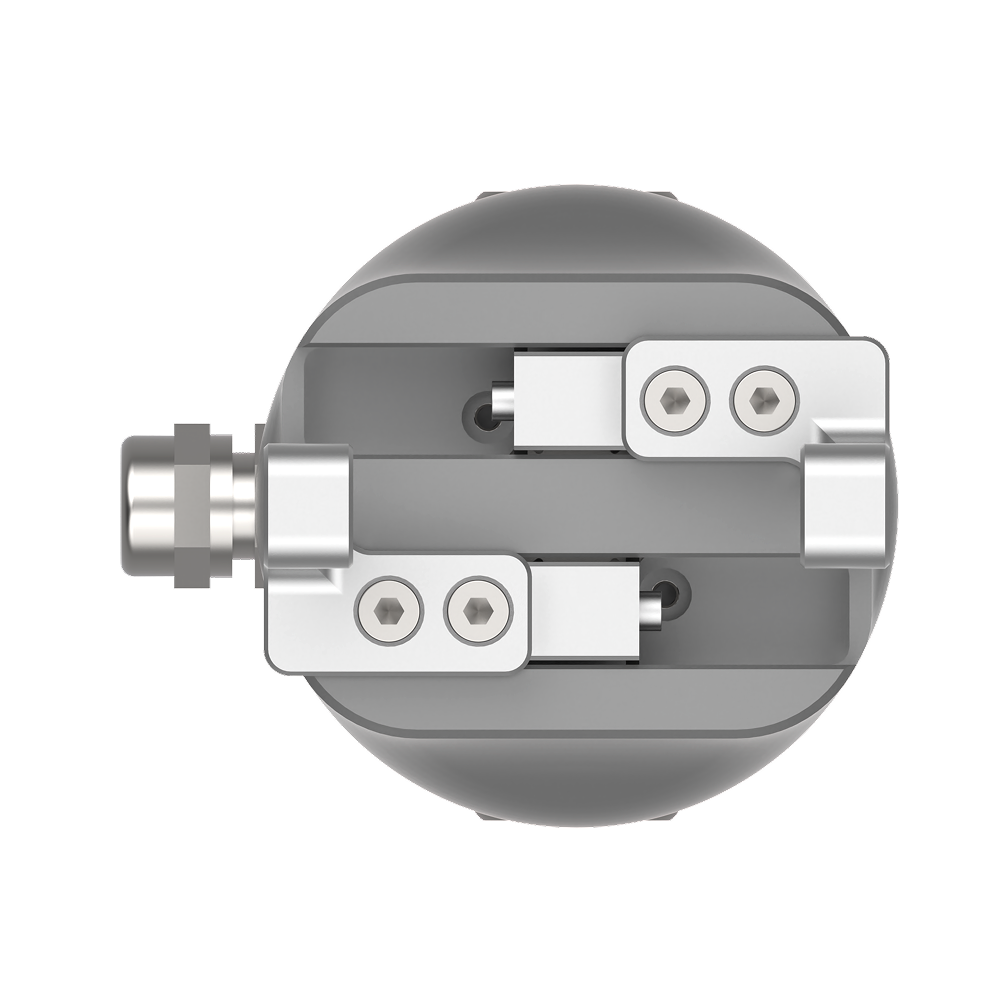

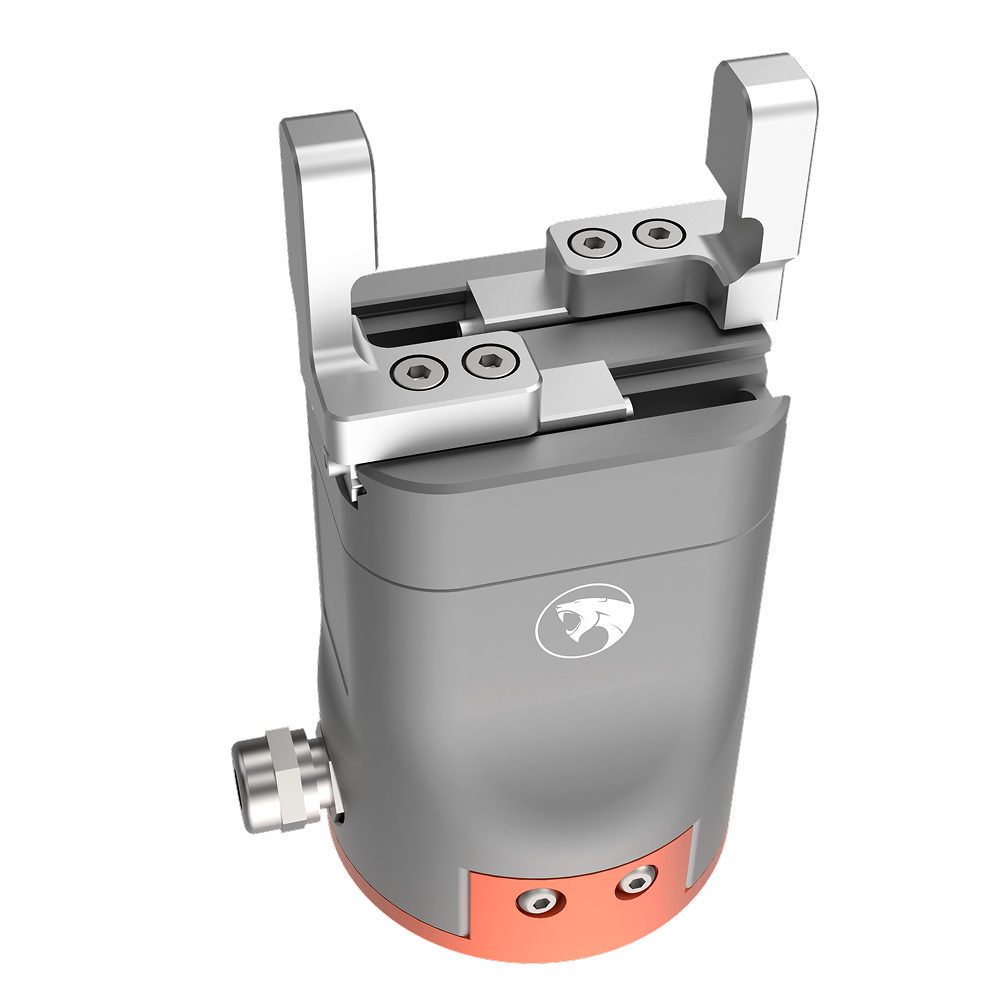

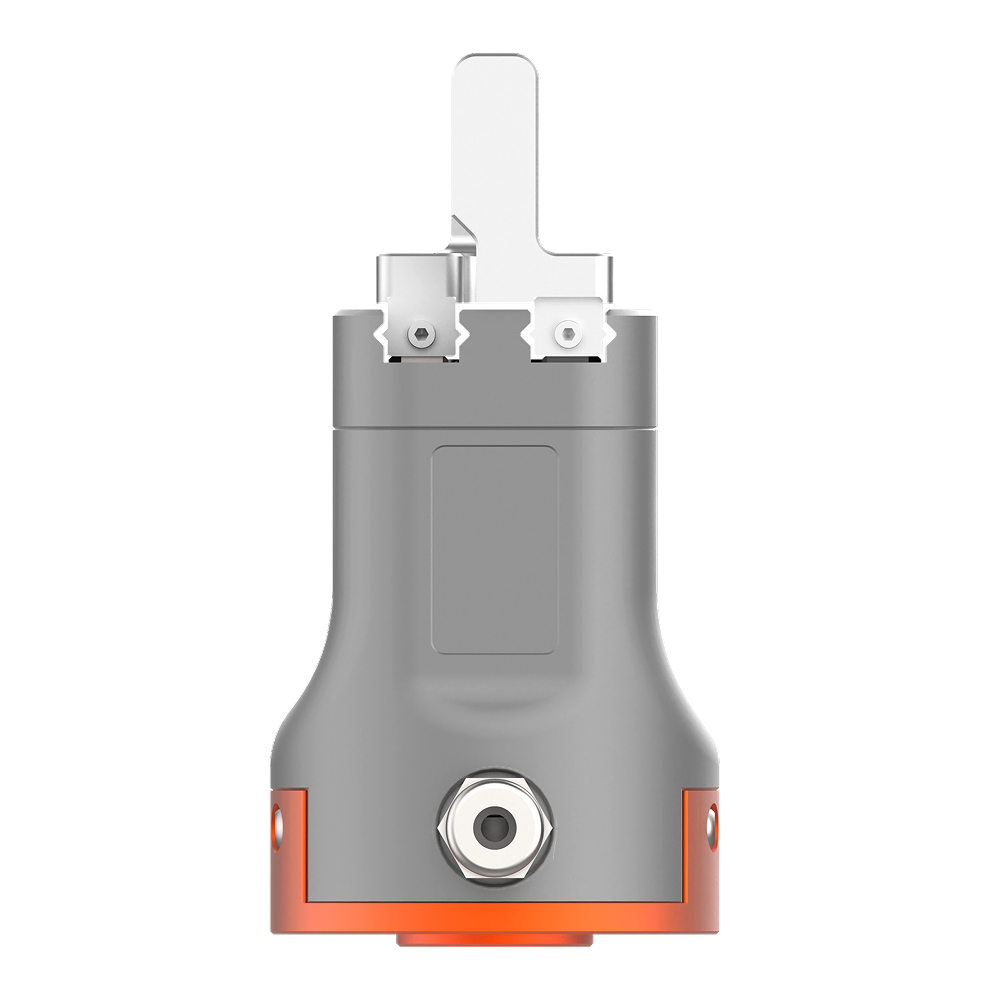

The Z-EFG-C50 is a versatile collaborative gripper, designed for safe and adaptive automation. With a powerful 40-140N adjustable clamping force, a 50mm stroke, and ±0.03mm repeatability, it ensures secure, high-precision handling for various manufacturing and logistics applications. The IP54-rated structure provides reliable performance in dynamic work environments.

Model

Z-EFG-C50

Total Stroke

50mm (adjustable)

Gripping Force

40-140N (adjustable)

Repeatability

±0.03mm

Gripping Weight

≤2kg

Single Stroke Time

0.5s

Weight

1.15kg

Dimension

72 × 72 × 100.5mm

Rated Voltage

24V±10%

Peak Current

2A

Protection Class

IP54

Temperature Range

5-55°C

Force & Torque Capacity:

Fz (Axial Force)

300N

Mx (Torque around X-axis)

7 N·m

My (Torque around Y-axis)

7 N·m

Mz (Torque around Z-axis)

7 N·m

Gripper Compatibility
