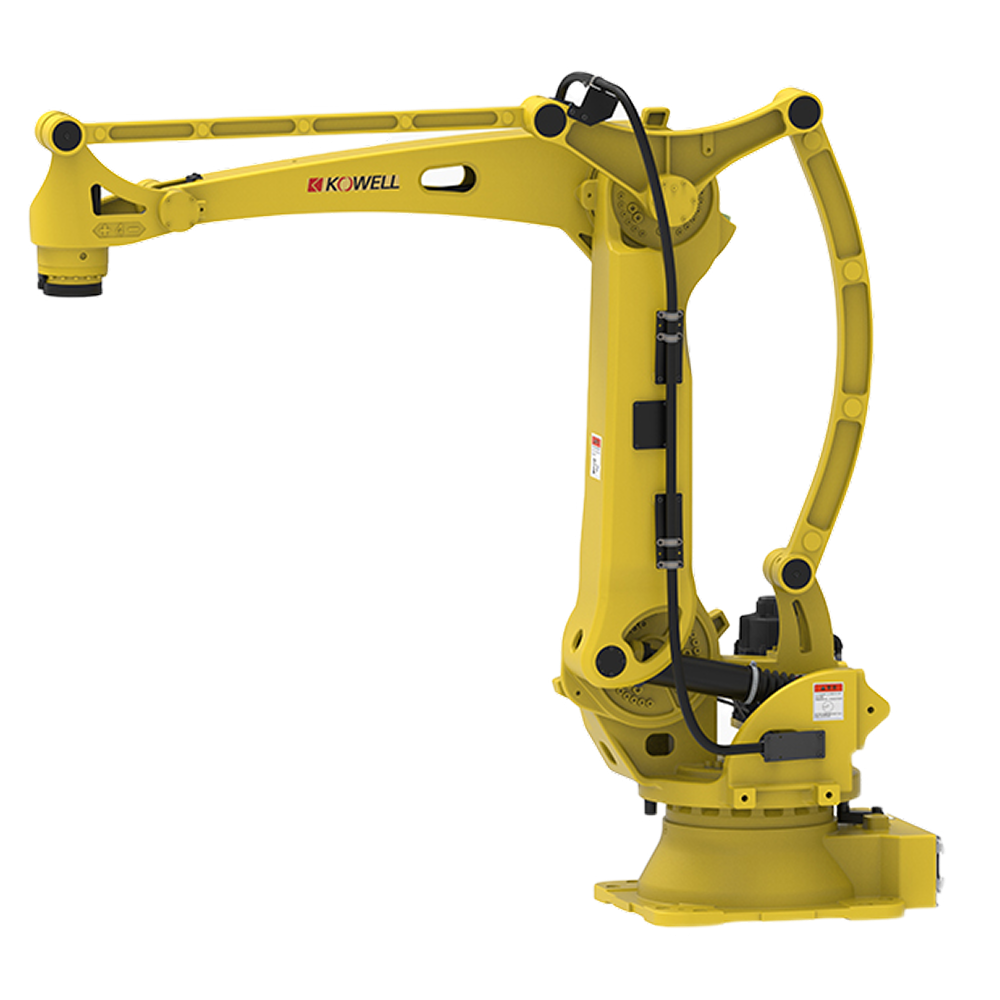

KW1180M-3200 | Large-Scale Palletizing & Logistics Robot

Engineered for high-capacity palletising and automated logistics, the KW1180M-3200 is designed to handle heavy loads with precision and efficiency. Its extended reach and robust payload capacity make it ideal for large-scale warehousing, distribution centres, and industrial automation applications.

Parameter

Specification

Model

KW1180M-3200

Type

Vertical Joint

Degrees of Freedom

4-Axis

Payload

180kg

Working Radius

3200mm

Repeatability

±0.05mm

Power Capacity

11KVA

Max Speed (J1-J3)

100°/S, 95°/S, 104°/S

Installation Method

Floor Mounted

Protection Level

Equivalent to IP54

Payload Capacity:

180kg – Handles heavy-duty palletising and logistics operations.

Working Radius:

3200mm – Provides extended reach for large-scale material handling.

Optimised for Palletising & Logistics:

Ensures stable, high-speed stacking and seamless workflow automation.

High Load Stability:

Maintains precision in handling bulk materials and large packages.

Industrial-Grade Durability:

Designed for long-term operation in demanding environments.

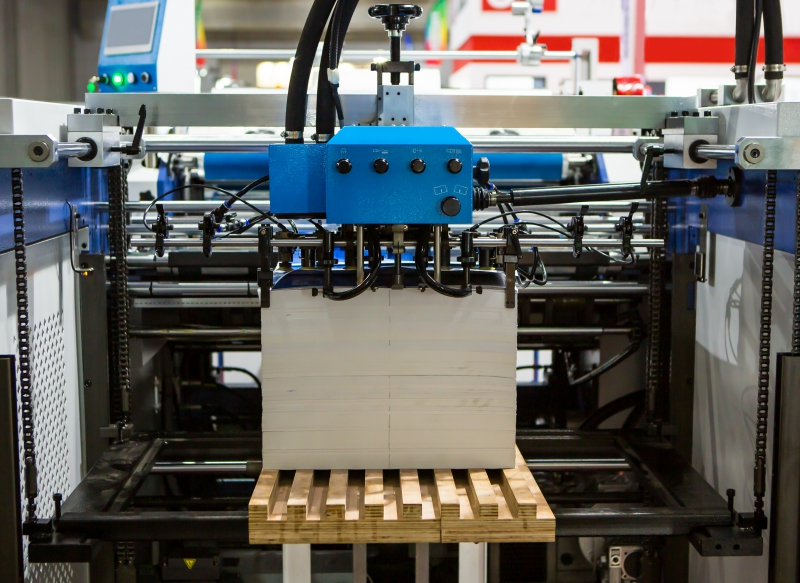

Conventional Palletising

Optimise high-volume production lines with automated palletising solutions, ensuring consistent stacking, efficiency, and safe material handling.

Learn More

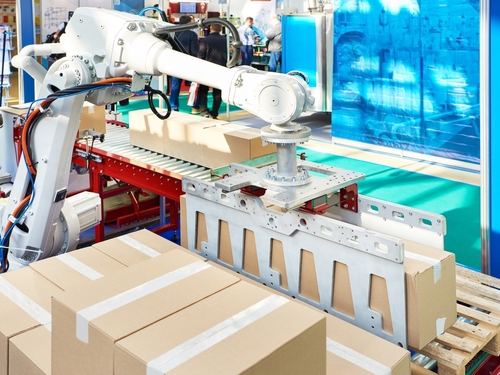

Robotic Palletisers

Automate stacking, sorting, and material handling with high-speed robotic palletisers, improving logistics efficiency and reducing manual labour.

Learn More

Depalletising

Streamline unloading and sorting with automated depalletising systems, enhancing workflow speed, accuracy, and operational safety.

Learn More

Inquiry Form

Get in touch with us for product inquiries, pricing, and technical details.

Product Model: KW1180M-3200

Industrial robots
