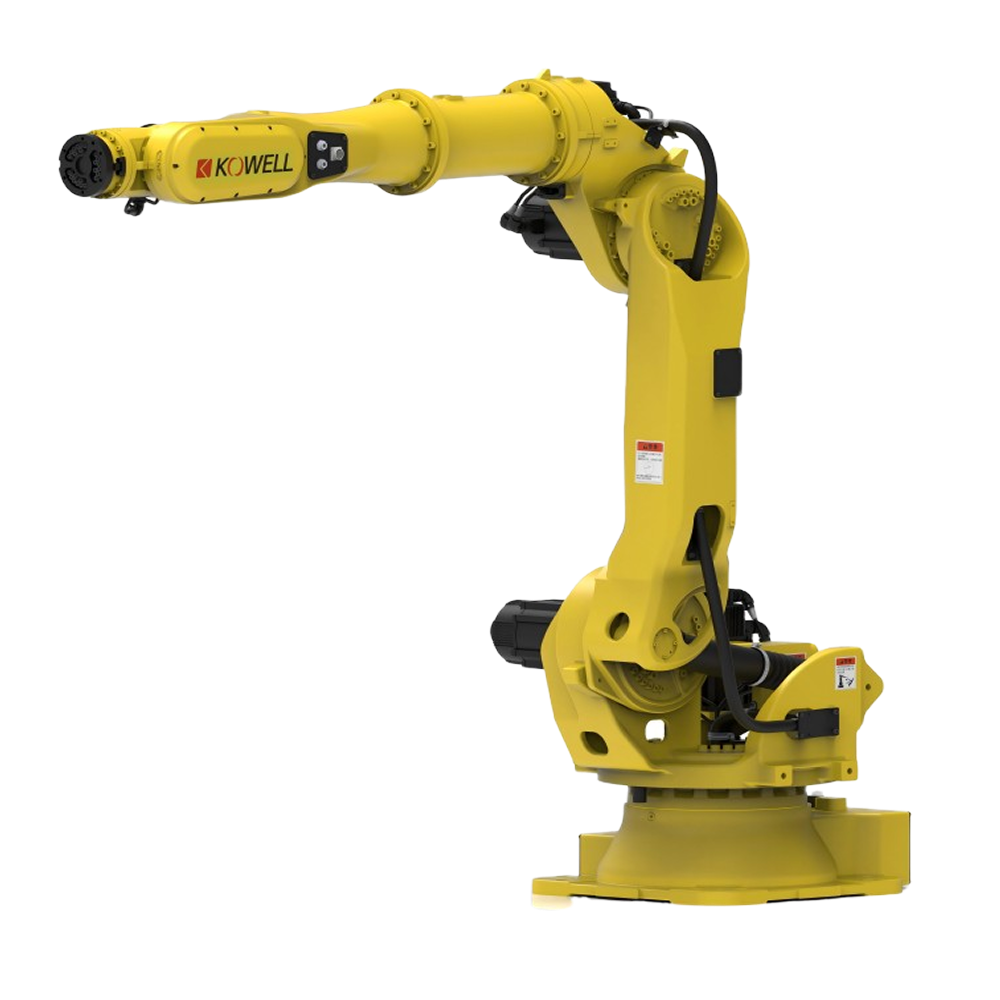

KW1220B-3200 | High-Payload Robotics for Industrial Automation

The KW1220B-3200 is designed for heavy-duty industrial automation, offering exceptional strength, precision, and efficiency in high-payload applications. Ideal for large-scale manufacturing, material handling, and automated assembly, this robotic arm ensures smooth operation in demanding industrial environments.

Parameter

Specification

Model

KW1220B-3200

Type

Vertical Joint

Degrees of Freedom

6-Axis

Payload

220kg

Working Radius

3200mm

Repeatability

±0.06mm

Power Capacity

11KVA

Max Speed (J1-J3)

110°/S, 100°/S, 100°/S

Installation Method

Elevated Floor Mounted

Protection Level

Equivalent to IP54

Payload Capacity:

220kg – Built for heavy-load applications in industrial automation.

Working Radius:

3200mm – Provides extended reach for large-scale production

High-Precision Motion:

Ensures consistent accuracy with ±0.06mm repeatability.

Optimized for Material Handling:

Enables stable and controlled movement for logistics and assembly.

Robust Construction:

Designed for long-term durability in intensive automation settings.
